ETS-lindgren 无线测试方案可完成的测试内容
5G：空口 OVER-THE-AIR (OTA),
天线方向图测试：ANTENNA PATTERN MEASUREMENT (APM),
多输入多输出：MULTIPLE INPUT-MULTIPLE OUTPUT (MIMO),
单输入单输出：SINGLE INPUT-SINGLE OUTPUT (SISO)
ETS-lindgren 无线测试方案覆盖产品：
2G/3G/4G/Wi-Fi SISO OTA
4G/Wi-Fi MIMO OTA /4G Carrier Aggregation
5G Sub-6 GHz SISO/MIMO OTA
5G mmWave OTA
辐射杂散Radiated Spurious Emissions (RSE)
不同行业天线的方向图测试Passive Antenna Pattern Measurement (APM)
Wi-Fi SISO
- GNSS / Standalone GNSS
Bluetooth
W-IoT
汽车雷达Automotive Radar
ETS-lindgren 无线测试系统型号选择：
EUTTEST提供数十个不同功能的无线测试系统，从以下两个图中根据左侧的运用选择测试系统型号。

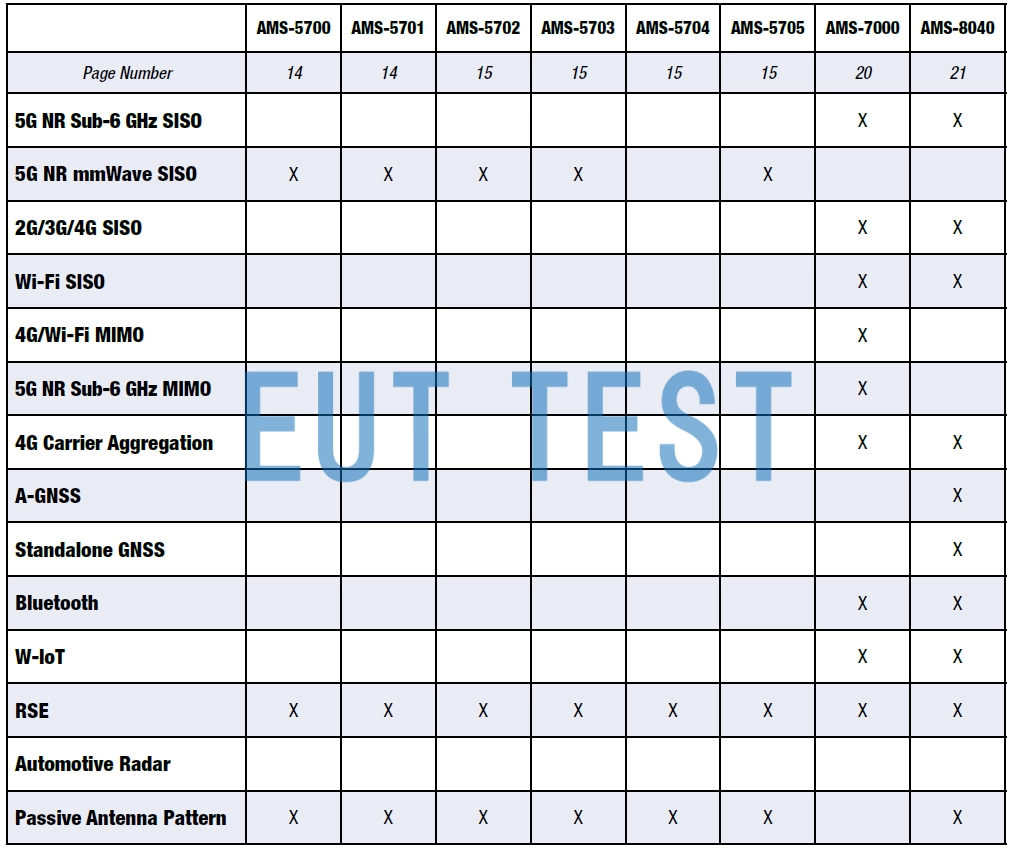

ETS-lindgren 无线测试方案 选项1

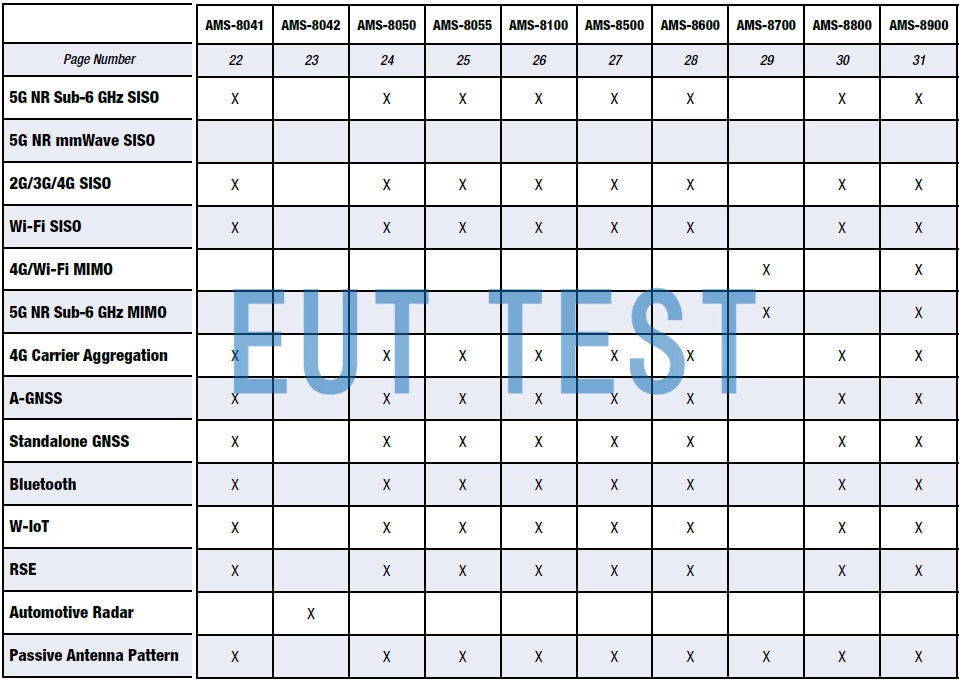

ETS-lindgren 无线测试方案 选项2
ETS-lindgren 无线测试系统的技术参数：
“提醒：左右滑动表格”测试系统型号
AMS-5700
AMS-5701
AMS-5702
AMS-5703
最佳应用
Manufacturing QA, Receiver/Transmitter Calibration, 2D or Fixed Beam Applications
5G Conformance and Performance Testing (EIRP, TRP, EIS, TIS), Radio Interoperability
5G Conformance and Performance Testing (EIRP, TRP, EIS, TIS), Radio Interoperability. Flexible System with Variable Path Length to Adjust for Wide Range of Array Sizes and Optimized Dynamic Range
5G Conformance and Performance Testing (EIRP, TRP, EIS, TIS), Radio Interoperability.
说明
Azimuth-Axis Antenna Measurement System
Distributed-Axis Antenna Measurement System
Combined-Axis Antenna Measurement System
Compact Range (CATR), Combined-Axis Antenna Measurement System
典型的被测产品
Module, Phone
Module, Phone
Module, Phone
Phone, Tablet, Small Cells, CPE, Laptop, gNB Base Station
兼容标准/技术
R & D
3GPP
3GPP
3GPP
频率范围
5G FR2 / 24 GHz – 44 GHz
5G FR2 / 24 GHz – 44 GHz
5G FR2 / 24 GHz – 44 GHz
5G FR2 / 24 GHz – 44 GHz
测试仪器的操作模式
桌面平台
带脚轮可移动
带脚轮可移动
暗室不可移动
测试方法
Direct Far-Field (DFF)
Direct Far-Field (DFF)
Direct Far-Field (DFF)
Indirect Far-Field (IFF)
旋转轴
单轴转台
Single Axis Turntable with Theta Arm (Spherical)
Dual Axis Positioner(Spherical) with Variable Range Length Linear Slide
Dual Axis Positioner (Spherical)
最大天线阵列尺寸
24 GHz = 7.8 cm
24 GHz = 6.8 cm
24 GHz = 5.6 cm – 9.6 cm
24 GHz = 60.0 cm
28 GHz = 7.2 cm
28 GHz = 6.2 cm
28 GHz = 5.0 cm – 8.8 cm
28 GHz = 60.0 cm
39 GHz = 6.2 cm
39 GHz = 5.2 cm
39 GHz = 4.4 cm – 7.6 cm
39 GHz = 60.0 cm
44 GHz = 5.8 cm
44 GHz = 5.0 cm
44 GHz = 4.0 cm – 7.0 cm
44 GHz = 60.0 cm
暗室外部尺寸
1.5 m x 0.7 m x 0.9 m
2.1 m x 1.4 m x 2.2 m
2.5 m x 1.4 m x 1.8 m
4.6 m x 2.7 m x 2.4 m
(4.9 ft x 2.3 ft x 3.0 ft)
(6.9 ft x 4.6 ft x 7.2 ft)
(8.2 ft x 4.6 ft x 5.9 ft)
(15.0 ft x 9.0 ft x 8.0 ft)
测试系统型号
AMS-5704
AMS-5705
AMS-5706
AMS-5707
AMS-5708
最佳应用
60 GHz Device/Antenna Performance Testing
5G Conformance and Performance Testing (EIRP, TRP, EIS, TIS), Radio Interoperability.
5G Conformance and Performance Testing (EIRP, TRP, EIS, TIS), Radio Interoperability.
5G Conformance and Performance Testing (EIRP, TRP, EIS, TIS), Radio Interoperability.
5G Conformance and Performance Testing (EIRP, TRP, EIS, TIS), Radio Interoperability.
说明
Distributed-Axis Antenna Measurement System
Compact Range (CATR), Combined-Axis Antenna Measurement System
Compact Range (CATR), Combined-Axis Antenna Measurement System
Compact Range (CATR), Combined-Axis Antenna Measurement System
Compact Range (CATR), Combined-Axis Antenna Measurement System
典型的被测产品
Module, Phone, Computer Peripherals
Module, Phone, Tablet, Small Cells
Phone, Tablet, Small Cells, Laptop
Phone, Tablet, Small Cells, CPE, Laptop, gNB Base Station
Phone, Tablet, Small Cells, CPE, Laptop, gNB Base Station
兼容标准/技术
WiGig, 802.11ad, 802.11ay
3GPP
3GPP / CTIA
3GPP / CTIA
3GPP / CTIA
频率范围
50 GHz – 75 GHz
5G FR2 / 24 GHz – 44 GHz
5G FR2 / 24 GHz – 44 GHz
5G FR2 / 24 GHz – 44 GHz
5G FR2 / 24 GHz – 44 GHz
测试仪器的操作模式
带脚轮可移动
带脚轮可移动
带脚轮可移动
暗室不可移动
暗室不可移动
测试方法
Direct Far-Field (DFF)
Indirect Far-Field (IFF)
Indirect Far-Field (IFF)
Indirect Far-Field (IFF)
Indirect Far-Field (IFF)
旋转轴
Single Axis Turntable with Theta Arm (Spherical)
Dual Axis Positioner(Spherical)
Dual Axis Positioner(Spherical)
Dual Axis Positioner(Spherical)
Dual Axis Positioner(Spherical)
最大天线阵列尺寸
50 GHz = 4.7 cm
24 GHz = 30.0 cm
24 GHz = 45.0 cm
24 GHz = 100.0 cm
24 GHz = 150.0 cm
60 GHz = 4.3 cm
28 GHz = 30.0 cm
28 GHz = 45.0 cm
28 GHz = 100.0 cm
28 GHz = 150.0 cm
70 GHz = 4.0 cm
39 GHz = 30.0 cm
39 GHz = 45.0 cm
39 GHz = 100.0 cm
39 GHz = 150.0 cm
75 GHz = 3.8 cm
44 GHz = 30.0 cm
44 GHz = 45.0 cm
44 GHz = 100.0 cm
44 GHz = 150.0 cm
暗室外部尺寸
2.1 m x 1.4 m x 2.2 m
2.7 m x 1.5 m x 2.0 m
3.0 m x 1.9 m x 2.4 m
8.5m x 4.9m x 4.0m
10.7m x 5.5m x 5.5m
(6.9 ft x 4.6 ft x 7.2 ft)
(8.8 ft x 5.0 ft x 6.5 ft)
(10.0 ft x 6.2 ft x 7.9 ft)
(28.0 ft x 16.0 ft x 13.0 ft)
(35.0 ft x 18.0 ft x 18.0 ft)
无线OTA测试
系统型号：
系统型号：
WPTC
ATS1000
CMQ200
ATS800B
ATS800R
ATS1800C
系统运用范围
R&D
antenna
measurements
CTIA
antenna
measurements
CTIA
R&D
antenna
measurements
antenna
measurements
Production
device components
device components
R&D
academia
research institutes
academia
research institutes
R&D
pre conformance
RF, PQA)
pre conformance
RF, PQA)
R&D
pre conformance
Conformance
(RF, RRM
pre conformance
Conformance
(RF, RRM
测试方式：
White box DFF/NF
White box DFF/NF
White box DFF
Black box CATR
Black box CATR
Black box CATR
测试频率范围：
0.4
to 90 GHz
to 90 GHz
10 to 87 GHz
20
to 75 GHz
to 75 GHz
10
to 87 GHz
to 87 GHz
20 cm
@ 40 GHz
@ 40 GHz
30 cm
@ 40 GHz
@ 40 GHz
Quiet zone
静区大小
静区大小
Ø
7 cm @ 40 GHz
7 cm @ 40 GHz
Ø4 cm @ 40 GHz
Ø
2 cm @ 40 GHz
2 cm @ 40 GHz
20 cm
@ 40 GHz
@ 40 GHz
20 cm
@ 40 GHz
@ 40 GHz
30 cm
@ 40 GHz
@ 40 GHz
位移
3D conical cut
3D conical cut
1D
2D
positioner
(
positioner
(
3D
Az over El
(optional)
Az over El
(optional)
3D
Az over El
Az over El
被测物EUT
大小
大小
Up
to 1 m
to 1 m
20 cm x 20 cm
25 cm x 25 cm
40 cm x 40 cm
40 cm x 40 cm
Ø 45 cm
被测物EUT
重量
重量
Up
to 100 kg
to 100 kg
20 kg
1 kg
2.5 kg
5 kg (w/o
pos.)
pos.)
8 kg
ETS-lindgren 官方授权代理商：
EUTTEST是ets-lindgren的官方授权代理商，该公司的官方全称是：ETS-Lindgren Inc.(ESCO technology Company)
深圳市易优特测试技术有限公司被ets-lindgren授权在中国区域销售所有产品，并提供所售产品的技术服务。
ETS-Lindgren 产品列表 ETS-Lindgren
