IC EMC集成电路电磁兼容测试简介

一、IC EMC集成电路电磁兼容测试是什么?

过去,EMC兼容性一直是电子产品模块级或系统级问题。

现在,电子设备制造商开始要求半导体制造商指定集成电路(IC)的辐射和抗扰度水平。一些半导体公司通过开发专有测试方法做出了响应,而另一些公司则与设备制造商和国际电工委员会(IEC)合作,制定了一些通用型的IC EMC测试和测量的标准方法。

二、IC EMC问题来源:

除了布线和结构设计外,设备中所使用的集成电路IC的特性也决定了它的EMC特性。IC对快速脉冲的敏感性随其结构尺寸、工作电压、工作点的较少而显著增加。当前的集成电路和微控制器开发领域趋近于结构小于100nm水平,甚至电脑芯片组已经达到7nm。并且伴随更高的开关率致使IC的EMC-EMS免疫性相较早期产品下降近90%。这种趋势也将最终反映在设备级别的EMC特性上。所以对于相同的功能的IC,良好的EMC特性能够提高IC制造商的竞争优势。

三、如何提高IC的EMC兼容性竞争力?

3.1、提高IC集成电路的电磁兼容性能应该首先从符合IEC标准开始:

在没有相应能力和资质规划符合自己产品的EMC标准时,IC制造商应该首先遵循国际电工委员会IEC的测试标准。然后在利用IEC标准开发符合自己产品的企业标准。

现在,IEC技术委员会TC47(半导体器件)正在领导 IEC 的工作。委员会将 EMC 测量标准的工作分配给其小组委员会 (SC) 47A+集成电路。TC 47/SC 47A 创建了工作组 (WG) 9,以准备测试和测量方法。WG9 的工作计划与其他行业和国家标准机构合作,如美国汽车工程师协会 (SAE) 和德国的埃德列克特罗尼克 Elektronik信息技术公司(VDE)。和产品及设备级别的EMC标准一样,IC-EMC也包括两种测试,射频EMI和射频抗扰度EMS的标准系列。

3.1.1、IEC 61967-EMI电磁发射 序列标准:(查新于20200328)

 IEC 61967-1:2018 RLV
Integrated circuits – Measurement of electromagnetic emissions – Part 1: General conditions and definitions

IEC 61967-2:2005
Integrated circuits – Measurement of electromagnetic emissions, 150 kHz to 1 GHz – Part 2: Measurement of radiated emissions – TEM cell and wideband TEM cell method

Show all publications »IEC 61967-4:2002+AMD1:2006 CSV
Integrated circuits – Measurement of electromagnetic emissions, 150 kHz to 1 GHz – Part 4: Measurement of conducted emissions – 1 Ω/150 Ω direct coupling method

IEC 61967-5:2003
Integrated circuits – Measurement of electromagnetic emissions, 150 kHz to 1 GHz – Part 5: Measurement of conducted emissions – Workbench Faraday Cage method

Show all publications »IEC 61967-6:2002+AMD1:2008 CSV
Integrated circuits – Measurement of electromagnetic emissions, 150 kHz to 1 GHz – Part 6: Measurement of conducted emissions – Magnetic probe method

IEC 61967-8:2011
Integrated circuits – Measurement of electromagnetic emissions – Part 8: Measurement of radiated emissions – IC stripline method

IEC TR 61967-1-1:2015
Integrated circuits – Measurement of electromagnetic emissions – Part 1-1: General conditions and definitions – Near-field scan data exchange format

IEC TS 61967-3:2014
Integrated circuits – Measurement of electromagnetic emissions – Part 3: Measurement of radiated emissions – Surface scan method

IEC TR 61967-4-1:2005
Integrated circuits – Measurement of electromagnetic emissions, 150 kHz to 1 GHz – Part 4-1: Measurement of conducted emissions – 1 Ω/150 Ω direct coupling method – Application guidance to IEC 61967-4

3.1.2、IEC 62132-EMS电磁抗扰度 序列标准:
  • IEC 62132-1:2015
    Integrated circuits – Measurement of electromagnetic immunity – Part 1: General conditions and definitions
  • IEC 62132-2:2010
    Integrated circuits – Measurement of electromagnetic immunity – Part 2: Measurement of radiated immunity – TEM cell and wideband TEM cell method
  • IEC 62132-3:2007
    Integrated circuits – Measurement of electromagnetic immunity, 150 kHz to 1 GHz – Part 3: Bulk current injection (BCI) method
  • IEC 62132-4:2006
    Integrated circuits – Measurement of electromagnetic immunity 150 kHz to 1 GHz – Part 4: Direct RF power injection method
  • IEC 62132-5:2005
    Integrated circuits – Measurement of electromagnetic immunity, 150 kHz to 1 GHz – Part 5: Workbench Faraday cage method
  • IEC 62132-8:2012
    Integrated circuits – Measurement of electromagnetic immunity – Part 8: Measurement of radiated immunity – IC stripline method
  • IEC TS 62132-9:2014
    Integrated circuits – Measurement of electromagnetic immunity – Part 9: Measurement of radiated immunity – Surface scan method
3.1.3、IEC 62215 EMS脉冲抗扰度 序列标准:
  • IEC 62215-3:2013
    Integrated circuits – Measurement of impulse immunity – Part 3: Non-synchronous transient injection method
  • IEC TS 62215-2:2007
    Integrated circuits – Measurement of impulse immunity – Part 2: Synchronous transient injection method
3.1.4、IEC 62228 IC-EMC评估方法标准

IEC 62228提供了一些产品的EMC评估方法和流程指导,并引用3.1.1~3.1.3节的测试方法进行测试。

  • IEC 62228-1:2018
    Integrated circuits – EMC evaluation of transceivers – Part 1: General conditions and definitions
  • IEC 62228-2:2016
    Integrated circuits – EMC evaluation of transceivers – Part 2: LIN transceivers
  • IEC 62228-3:2019
    Integrated circuits – EMC evaluation of transceivers – Part 3: CAN transceivers
  • IEC 62228-5 ED1
  • Integrated circuits – EMC evaluation of transceivers – Part 5: Ethernet transceivers
  • PNW 47A-1092
  • Future IEC 62228-6: Integrated circuit – EMC Evaluation of transceivers – Part 6: PSI5 transceivers
  • IEC 62228-7 ED1
  • Integrated circuits – EMC evaluation of transceivers – Part 7: CXPI transceivers
3.1.5、其他标准:
  • IEC 62433-1:2019
    EMC IC modelling – Part 1: General modelling framework
  • IEC 62433-2:2017
    EMC IC modelling – Part 2: Models of integrated circuits for EMI behavioural simulation – Conducted emissions modelling (ICEM-CE)
  • IEC 62433-3:2017
    EMC IC modelling – Part 3: Models of integrated circuits for EMI behavioural simulation – Radiated emissions modelling (ICEM-RE)
  • IEC 62433-4:2016
    EMC IC modelling – Part 4: Models of integrated circuits for RF immunity behavioural simulation – Conducted immunity modelling (ICIM-CI)
  • IEC TR 62433-2-1:2010
    EMC IC modelling – Part 2-1: Theory of black box modelling for conducted emission
  • IEC 63011-1:2018
    Integrated circuits – Three dimensional integrated circuits – Part 1: Terminology
  • IEC 63011-2:2018
    Integrated circuits – Three dimensional integrated circuits – Part 2: Alignment of stacked dies having fine pitch interconnect
  • IEC 63011-3:2018
    Integrated circuits – Three dimensional integrated circuits – Part 3: Model and measurement conditions of through-silicon via

3.2、使用符合IEC测试标准的测试设备和测试方法测试IC的电磁兼容性能

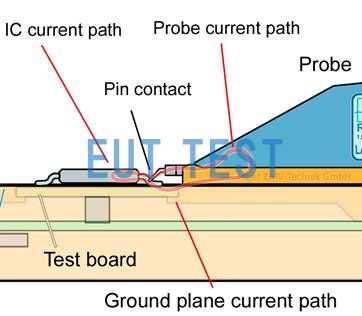

使用深圳市易优特测试技术有限公司代理的德国langer-emv IC测试系统,使用者可以在开发过程中营造一个逼真的EMC环境,注入各种参数的脉冲. 这样IC电路的设计者能够方便的看到IC对于各类干扰的影响,进而改进芯片的设计。IC测试系统可以在测试时充分的保护IC上敏感脆弱的引脚。

IC EMC测试系统
IC EMC测试系统
IC-EMC测试设备产品线:
IC-EMC测试设备产品线:
IC-EMC测试设备产品线:
IC-EMC测试设备产品线图解
IC-EMC测试设备产品线图解

IC-EMC测试分类和测试仪器一览表

本文不详细介绍上表中的所有设备,您可以直接在EUTTEST网站搜索产品栏中输入以上型号(例如 P600)查询具体产品的技术参数和测试方法。

下面也会不断更新列出已有的产品说明:

P603 集成电路测试系统 高频IC引脚电流 符合IEC 61947-4

P603-1 集成电路测试系统 高频IC引脚电流 符合IEC 61947-4

P750 集成电路测试系统 高频IC引脚电压 符合IEC 61947-4

S603 集成电路测试系统 高频IC引脚电流 符合IEC 61947-4

S750 集成电路测试系统 高频IC引脚电流 符合IEC 61947-4
