Introduction：
The P1602 is a magnetic field test probe for IC integrated circuits manufactured by langer-emv and marketed by EUTTEST, with a frequency range of up to 3 GHz. The metal housing is compatible with the GND25 connector and isolates it from external signal interference.
The role of P1602:
The RF Magnetic Field Probe P1602 has a 50 Ω RF measurement output. In order to localize magnetic currents in different directions, the RF magnetic field probe can be rotated 360° above the IC. With the help of a distance ring (3 or 10) mm, the RF magnetic field probe is located within a defined distance above the IC.
Technical data of the P1602:
<<<<提醒：左右滑动表格>>>>| Frequency range | DC-1GHz |
| output interface | Female N (50 Ω) |
| measurable | (40 x 22) mm |
| weight | 760 g |
| Dimensions (L x W x H) | (180 x 96 x 96) mm |

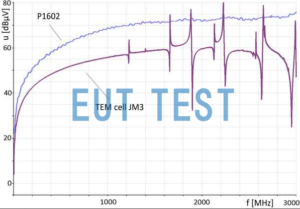

Frequency characteristic curve of P1602
P1602 Component Structure Diagram
P1602 Test System Configuration Diagram
As shown above, the bottom of the P1602 has a magnetic field probe that grabs the magnetic field on the surface of the IC and displays it on the spectrometer.
The P1602 test system is to be used in conjunction with other accessories.
The P1602 can be used as a test system with the following products:
P1602 , high frequency magnetic field probe;
P1702 , high frequency electric field probe;
CS-ESA set , ESA chip scanning software;
EPM 02;
BPM 02 , dB/dt field test system;
D70 h03;
D70 h10 ;
FKE 30;
