Product Description:

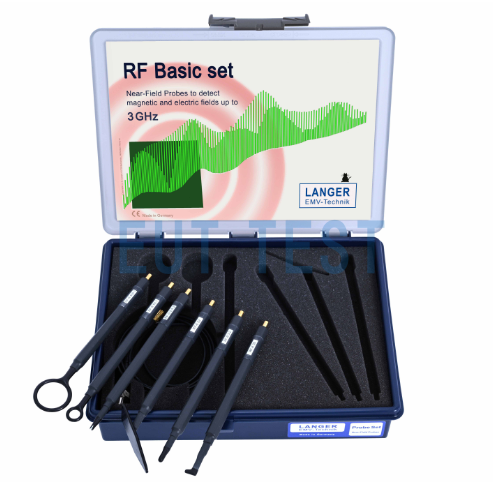

RF Basic set is a new near-field probe set launched by Langer in May 2025, authorized to be sold and quoted for service by EUTTEST Shenzhen. It can be used by PCB developers to test electromagnetic and magnetic fields in the frequency range of 30 MHz - 3 GHz. This basic near-field probe set includes six passive near-field probes for development-related electric and magnetic field measurements on PCB components, plus different resolution configurations that allow the set to localize RF-emitting interferences step-by-step, quickly find the sources of RF emissions on PCB components, and also enables the study of electromagnetic field interference coupling mechanisms.
RF Basic set test usage profile:
The RF Basic set contains six probes with different resolutions and different EMF measurement formats, which can be used in the following order:
- First use RF-R 400-1-1 and RF-R 400-1-1-1 to determine the source of the PCB assembly's emissions from a long distance.
- Use the RF-R 400-1 and RF-E 02 probes to determine the transmitter interference level of PCB assemblies from a long distance.
- Subsequently, the source of magnetic field disturbances can be located more accurately using higher resolution probes such as the RF-R 3-2, RF-B 3-2 and RF-U 5-2 probes, or the source of electric field disturbances can be located using the RF-E 05 probe.
- Connect the selected near-field probe to theEMI Receiver,spectrum analyzeror with Oscilloscope with 50 Ω inputThe

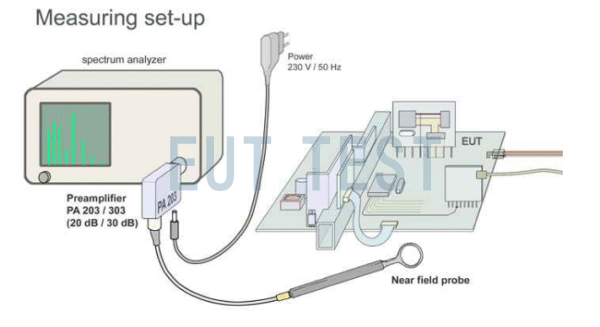

As shown below, if the bottom of the test is noisy, a preamplifier can also be added to the near-field probe to reduce the bottom noise.

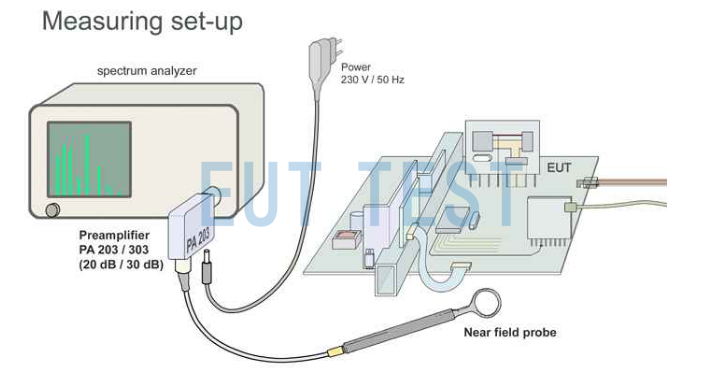

RF Basic set tested with preamplifier and spectrum analyzer
Finally, by slowly moving the near-field probe over the PCB under test, the source of radiation interference emission and the direction of the EMF and its distribution area on the electronic assembly can be determined.

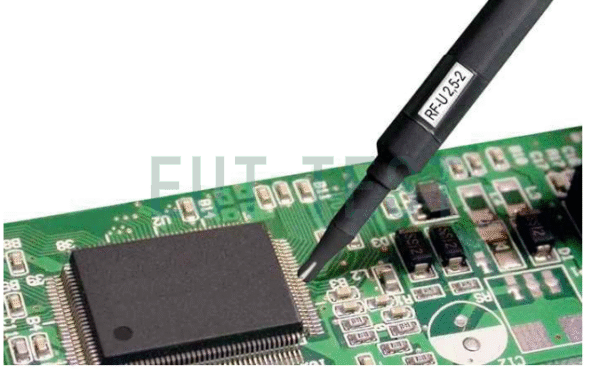

Slowly move the near-field probe over the PCB under test to find the source of the radiation interference emission.
Technical parameters：
<<<<提醒：左右滑动表格>>>>| Near-field probe set model | RF Basic set |
| manufacturer | Rangel Electronics |
| agent | Shenzhen EUTTEST |
| Test frequency range | 30MHz-3GHz |
| connector | SMB |
| weight | 400 grams |
| size | 24*19.5*6 cm |
| List of accessories included in the probe set 1x for 1 | 1x, RF-R 400-1, Magnetic Field Near Field Probe 30 MHz - 3 GHz 1x.RF-R 3-2, Magnetic field near-field probe 30 MHz - 3 GHz 1x, RF-B 3-2, Magnetic Field Near Field Probe 30 MHz - 3 GHz 1x.RF-U 2.5-2, Magnetic field near-field probe 30 MHz - 3 GHz 1x, RF-E 02, Electric Near Field Probe 30 MHz - 1.5 GHz 1x, RF-E 05, Electric Near Field Probe 30 MHz - 3 GHz 1x, SMB-BNC 1 m, SMB-BNC RF cable 1x, Case 5, Probe Case |
