Introduction：
NNHV 8123-200 is the latest 200A high-voltage automotive electronics HV AN artificial network from Schwarzbeck, Germany. NNHV 8123-200 uses a circuit principle with an impedance of 5 μH | 50 Ω, which complies with standards.CISPR 25 Ed. 4 and BMW GS 95025-1, which can beUsed for new energy automotive electronic parts testing needs, this LISN supports the maximum continuous operating current of 200A and maximum instantaneous current of 280A for the automotive electronic parts products under test.
Circuit Schematic for NNHV 8123-200
Compliant test standards:
- ISO 11452-4
- CISPR 25 ed4.0 latest version
- BMW GS 95025-1
- GB/T 18655-2018
CISPR 25 is a standard number that applies to any electronic/electrical component on vehicles, boats, and internal combustion engines used for testing radio nuisance testing of vehicles, trailers, and installations to protect adjacent receivers on board the vehicle in proper working order. The name of the standard is: Vehicles, boats and internal combustion engines Radio disturbance characteristics Limits and methods of measurement for the protection of on-board receivers Vehicles, boats and internal combustion engines-Radio disturbance characteristics -Limits and methods of measurement for the protection of on-board receivers
Our standard GB 18655 is the Chinese translated version of CISPR25.
Test application:

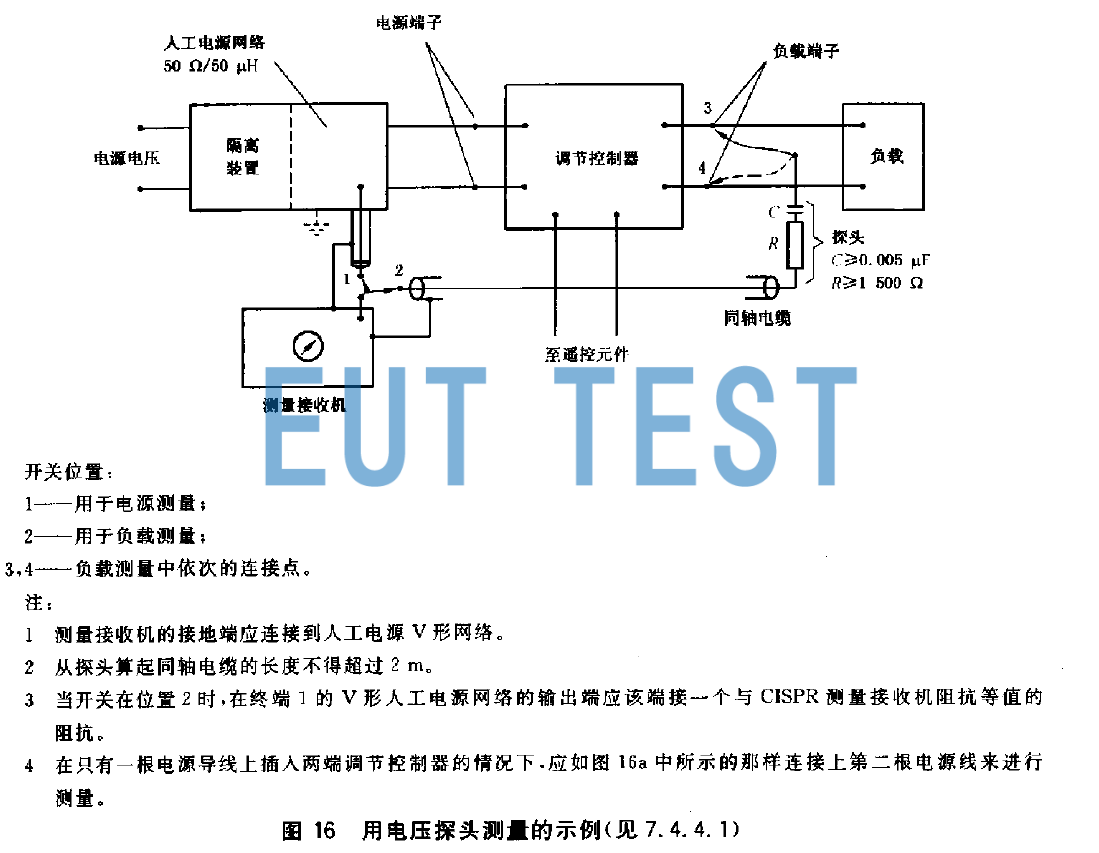

NNHV 8123-200 is mainly applied to single circuit EMI voltage test, which meets the standard requirements of the latest version of CISPR 25:2016 Edition 4.0 Version 4 and BMW GS 95025-1 and GB/T 18655-2018, and can be tested in the frequency range of HF-VHF, i.e. 0.1MHz-150MHz, using a shielded cable. The test can be carried out with shielded cables in the HF-VHF i.e. 0.1MHz-150MHz frequency range.
The newest model of 2019 NNHV 8123-200 with a maximum continuous input current of 200A is able to test higher current in-vehicle electronics, making up for the previous problem of not being able to test high currents.
You can also connect our 50Ω ohm terminals for BCI high current injection testing to ISO 11452-4;
NNHV 8123-200 testing requires the HVSE 8600 high voltage shield, contact EUTTEST for more information.
Technical parameters：
<<<<提醒：左右滑动表格>>>>| Models of HV AN | NNHV 8123-200 |
| Device name | HV AN High voltage artificial network |
| manufacturer | Schwarzbeck |
| agent | Shenzhen EUTTEST |
| Available frequency range | 0.1-150MHz |
| Maximum continuous current | 200A |
| Maximum current (short time) | 280A |
| Maximum DC Voltage | 1000V |
| Maximum AC 50/60Hz voltage | 700Vrms |
| Maximum AC 400Hz voltage | 300Vrms |
| impedance | 5 μH || 50 Ω Compliance with CISPR 25:2016 Edition 4.0 High Voltage LISN Requirements |
| HV Cable | 4-11mm |
| connector | N mother |
| size | 160*165*210mm |
| weight | 3 kg |
| Shield Options | HVSE 8600 |
Graph of related technical parameters：
EUT Port Impedance for NNHV 8123-200
Partial Pressure Coefficient Graph for NNHV 8123-200
Operating Temperature Curves for NNHV 8123-200
other
We provide quotation and after-sale consulting service for NNBM 8124-200, if this equipment can not meet your requirements, please go to the following product page to choose more LISN and AMN that we sell.
