F-97 FCC 1500MHz Miniature Surface Current Probe

Product Description:

The 1500MHz Miniature Surface Current Probe model F-97 is manufactured by the FCC in the USA and authorized to be sold by our company. It can quickly test the current on flat or curved surfaces of products such as PCBs, interconnecting cables and flying wires. Because this probe is very sensitive to the surface current of PCB, it can quickly measure the surface current on PCB.

Principle:

It lies in obtaining the near-field magnetic field formed on the PCB alignment, so it needs to be orthogonal to the wires to get the maximum value, and also includes RF currents on 40 MHz - 1500 MHz printed boards.

• Measuring Leads: Leads will be tested in a slot in the lower part of the probe, or the PCB alignment can be placed parallel to the slot.
• Measuring surfaces: Map a surface by changing the direction of the probe to obtain the maximum source of interference, then repeat the measurement at the next location.

Technical parameters：

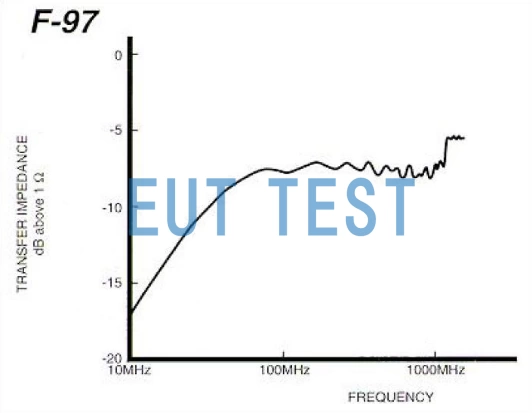

Transfer impedance characteristic curve:

Transmission Impedance

Order No. EUTS0053

Note: This product is branded as FCC - Fischer Custom Communications, Inc. and is not Federal Communications Commission (FCC) certified.

Note: Please refer to the original FCC factory data sheet for any changes in product parameters.
