AL-130R Com-power 50cm loop antenna

AL-130R Magnetic field antenna coefficient and electric field antenna coefficient

Order Number: EUTS0880

Test frequency: 9kHz - 30MHz

Type: Active magnetic field loop antennas

Brand: COM-POWER

Min. order: 1 Unit

Stock: In stock 1 unit

Delivery: 1 week

Standards:

ANSI C63.4

Industry： General Electronics

Warranty: Original Import ; New Products ; Authorized Sales

Training: On-site training; Telephone; Email

Logistics: Shenzhen to National

Payment: Internet Banking T/T

Product Price:

Product Description:

The AL-130R is an active loop antenna manufactured by Com-power and is typically used for EMI testing in accordance with ANSI C63.4, as well as most CISPR, EN, and ETSI standards. It operates over the 9 kHz to 30 MHz frequency range, and has a built-in low-noise preamplifier that improves the overall measurement sensitivity, as well as the overall signal-to-noise ratio.

Utilization Guide:

The 50cm loop antenna is battery powered (rechargeable 6V Ni-MH battery pack) and can of course be powered from the standard 220V power adapter. The front panel of the antenna base features LED indicators for real-time display of RF on/off, power, low battery, amplifier saturation, and charging status. According to ANSI C63.4-2014, compliance testing with active loop antennas in unshielded environments is only allowed if the saturation indicator is continuously monitored during testing.

Additionally, EUTTEST offers a remote controller option, RAI-100, which, when the controller is connected to the AL-130R, allows you to remotely turn the measurement circuit on or off via fiber optics, as well as remotely monitor saturation and battery level.

For installation, it is recommended to measure at a height of 1 meter, which can be done with the AT-220. derrick craneand adapters to mount and adjust the antenna to the desired test height. We also offer Com-powe's SPA-900TG sequencespectrum analyzerand other antenna products, welcome to contact us for product quotation information.

Technical parameters：

Product Specification Sheet:

“Reminder: swipe tables left and right”

Product model

AL-130R

manufacturer

Com-power

agent

Shenzhen EUTTEST

frequency of use

9kHz - 30MHz

ring diameter

19 inches (50 cm)

impedance

50Ω

working hours

10-12 hours (built-in battery)

saturation (color theory)

>1 V/m / >120 dBμV/m
(>2.65 mA/m) / >68.5 dBμA/m)

Electric field antenna coefficient

15dB

Magnetic field antenna coefficient

-36.5dB

size

51 cm * 50 cm * 27 cm

weight

2.5 kg

“Reminder: swipe tables left and right”

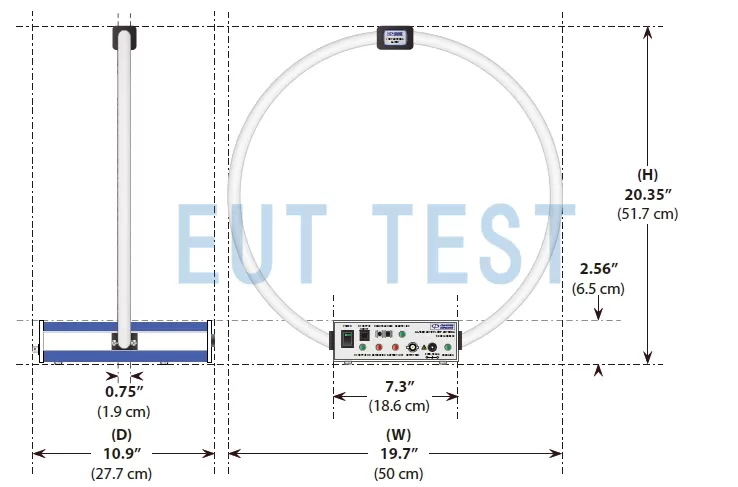

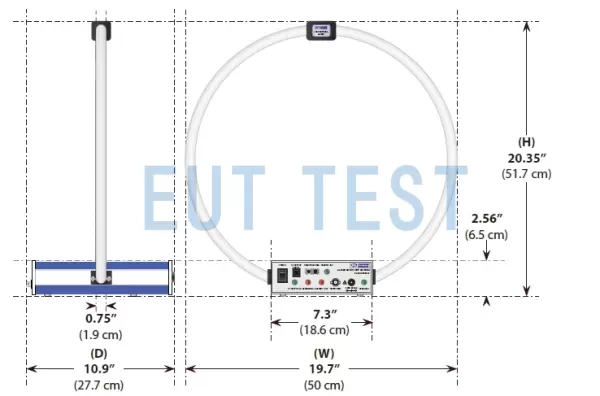

Antenna Dimension Drawing:

The diameter of this antenna is designed to be 50cm, please determine this according to the EMC test criteria of the required certification.

Physical dimensions

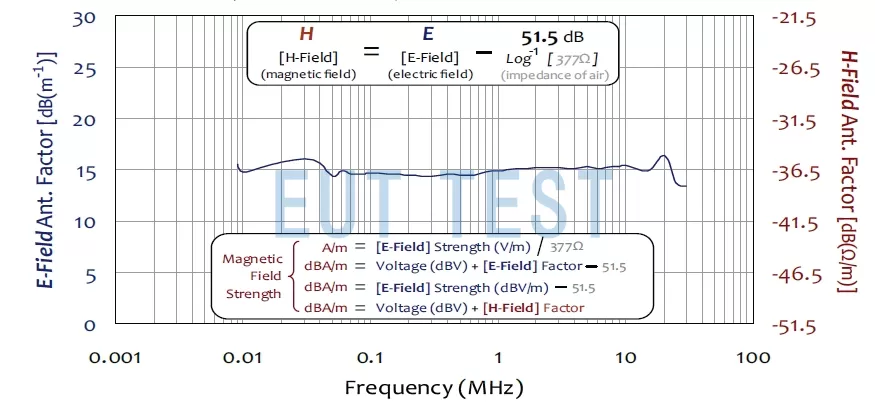

Antenna coefficients:

The antenna coefficients need to be corrected to the EMC test software, and you need to set different coefficients according to the measured magnetic field and electric field when you actually measure. We will provide you with an excel data sheet at the time of delivery, which is easy to import into the test software for quick use.
