BNB 8652 B Schwarzbeck LISN Impedance stabilization network

Order Number: EUTS0793
Brand: Schwarzbeck
Origin: Germany | Import

Min. order: 1 Unit
Delivery: Click on the link above to inquire

Standards:
Industry: General Electronics

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Internet Banking T/T


Product Description:

BNB 8652 B is one of the battery impedance network products manufactured by Schwarzbeck, it is also a LISN impedance stabilization network, which is authorized to be sold and quoted by EUTTEST in Shenzhen, China. BNB 8652B meets the requirements of ISO 21498-2:2021-03, MBN 11123:2021-08, (VW 80300. 2021-02), "VOLVO Impedance Stabilization Network (VISN)" and "TVB Electrical Quality and EMC Requirements": BNB 8652B meets the requirements of ISO 21498-2:2021-03, MBN 11123:2021-08, (VW 80300:2021-02), "VOLVO Impedance Stabilization Network (VISN)" and "TVB Electrical Quality and EMC Requirements".

Technical parameters:

Product Specification Sheet:

“Reminder: swipe tables left and right”
Product model
BNB 8652 B
manufacturer
Schwarzbeck (name)
China Agent Sales
EUTTEST
Built-in resistor Rint
2 × 100 mΩ
2 × 60 mΩ
2 × 50 mΩ
2 × 25 mΩ
2 × 10 mΩ (one resistor per path)
See circuit schematic below
Maximum voltage
1000 VDC
Maximum current
100 A
self-awareness
0.5 μH
LISN susceptibility
2 x 1 μH
Frequency range
10Hz - 1MHz
Coupled Transducer Frequency Range
10Hz - 150kHz
Coupled Sensor Current
Maximum 80A
Maximum input for coupled sensors
30A AC
Maximum Inrush Current
220A ~ 450A
weight
63 kg ~ 80 kg
size
670 mm * 420 mm * 660 mm
“Reminder: swipe tables left and right”

Quick use:

You need to switch different Rint sizes within the BNB 8652 B to suit the DUT operating current.

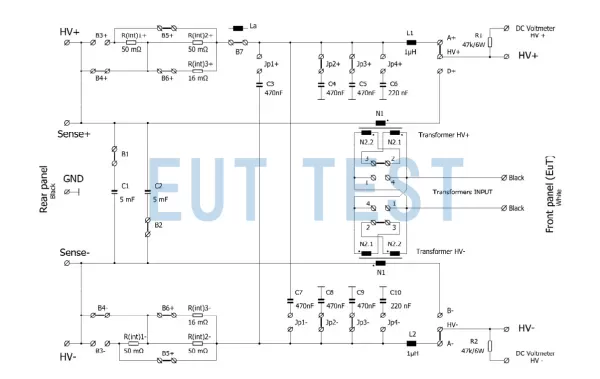

BNB 8652 B Switchable Circuit Schematic for Different Rints

BNB 8652 B Switchable Circuit Schematic for Different Rints

When measurements are required for the MBN 11123-343 standard:

You need to select optionsBNB-CN: The coupling function complies with the "MBN 11123-343" specification.

The coupling network operates through two HV+ and HV- coupling transformers inside the 8652B enclosure. It is designed to enable theLFPA 9733 CCapable of coupling the desired level in the 10 Hz to 150 kHz range (±15 Vpeak).

4 safety banana jacks ("Transformer HV+/-") are located on the housing (DuT side) for connecting the power supply from theLFPA 9733 BThe signal.

The BNB operates as a coupling network with a maximum current of 80 A.

Inside the housing, it is possible to switch between the LISN function and the coupling function of the 8652B.
