CDN ISN S8 RJ45 Schwarzbeck ISN coupling decoupling network

Product Description:

CDN ISN S8 RJ45 is one of the coupling decoupling network products from Schwarzbeck, which can be used as an impedance stabilized network ISN or CDN. You can use this device to measure the conducted emission measurement application of products with RJ45 port connectors, and it can also perform IEC61000-4-6 conducted immunity testing, two of the most commonly used EMC functions making it the The two most commonly used EMC functions make it the most cost-effective.

CDNISNS8RJ45 Circuit Schematic

Learning Materials:Conducted immunity CDN method, current clamp method, EM clamp method

Technical parameters：

Product Specification Sheet:

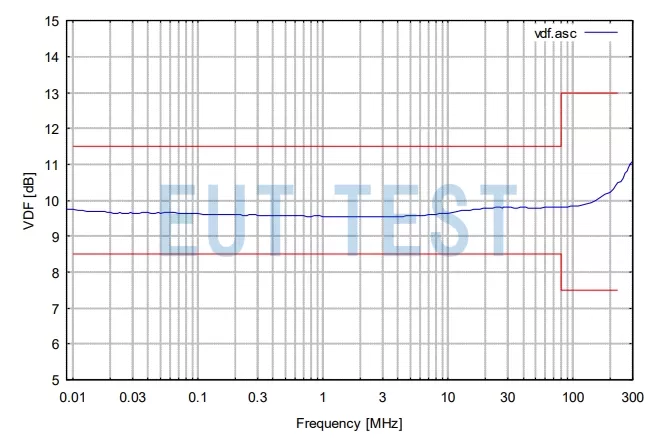

Voltage divider for Schwarzbeck CDN ISN S8 RJ45

We also offer similar products with BNC connectors:CDN ISN S1 BNC

Order No. EUTS0800

Schwarzbeck Official Authorized Dealer:

EUTTEST is an official authorized distributor of SCHWARZBECK, whose full official name is: SCHWARZBECK MESS - ELEKTRONIK OHG

Ltd. is authorized by schwarzbeck to sell all products in China and provide technical service for the products sold.

Click to view the image of the authorization
