ECSS LISN 1 Schwarzbeck 1.5μH Artificial Power Supply Network

Product Description:

ECSS LISN 1 was developed by the German company schwarzbeck in accordance with the European Cooperation for Space Standardization.EMC Test EquipmentEngineers can use this device for DC main power line voltage continuity up to 200V.impedance matchingSuitable for use in the 10 Hz to 150 MHz frequency range and supports 15A DC current. This product is distributed and quoted by Shenzhen EUTTEST.

Usage Profile:

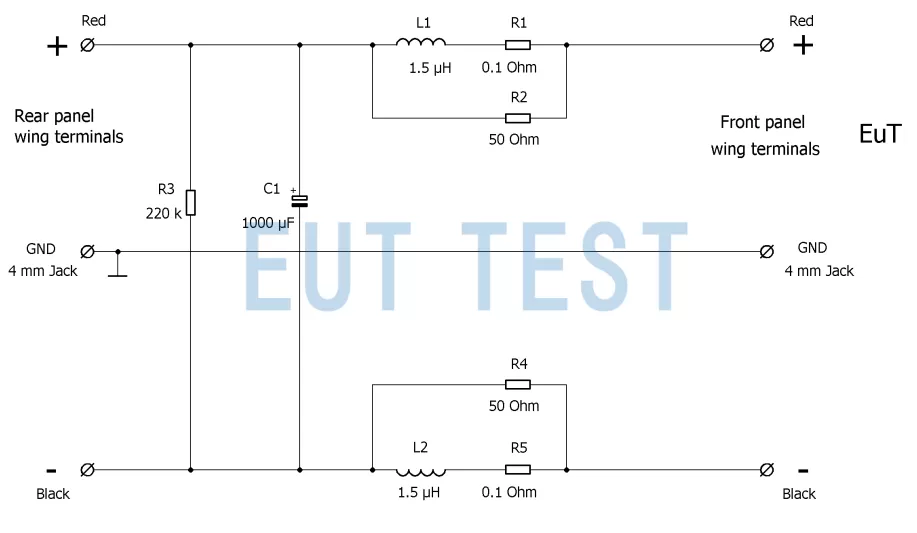

The electrical schematic for ECSS LISN1 is shown below. When in use, the red terminal at the front end of the device must be connected to the positive voltage, and the black terminal to the negative voltage. The impedance characteristics of each path are primarily achieved through an inductor in parallel with a 50-ohm resistor: 1.5 µH || 50 Ω. The device under test (DUT) must be connected to the terminals on the front panel, while the power supply voltage must be connected to the rear panel. The DUT can support a continuous current of 10 A and can even exceed 15 A for short durations.

schematic design

Technical parameters：

Product Specification Sheet:

Calibration test results:

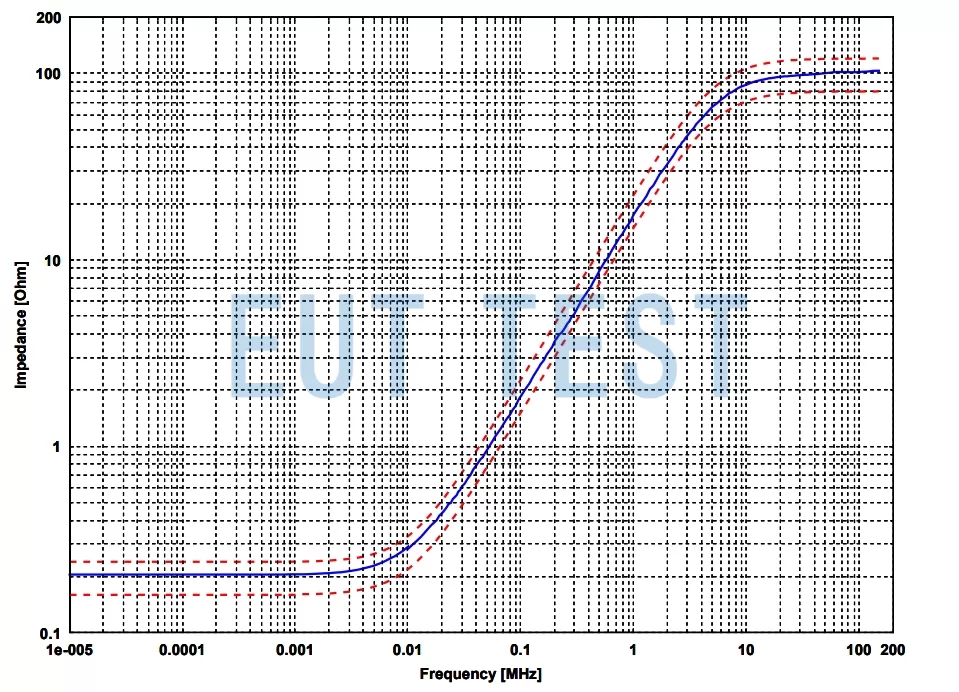

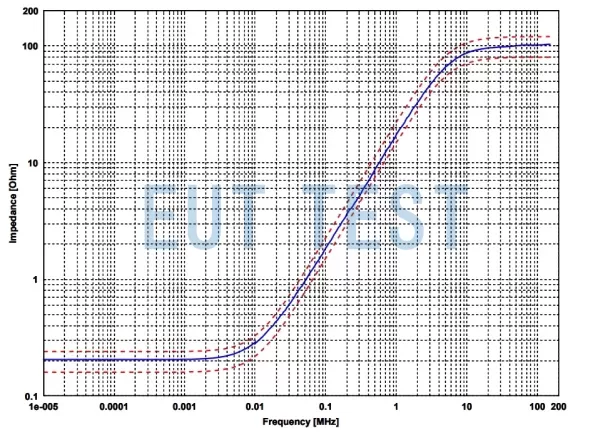

The DC impedance test results for this LISN are shown below.

schwarzbeck ECSS LISN1 DC Impedance Measurement Results

Order No. EUTS0860
