ECSS LISN 3 Schwarzbeck 7μH 50Ω Artificial Power Supply Network

Product Description:

ECSS LISN 3 is a 7μH 50Ω artificial power network EMC test instrument manufactured by schwarzbeck, suitable for use within the 10Hz-150MHz frequency range according to European Cooperation for Space Standardization guidelines. The ECSS LISN 3 features M7 output connectors capable of handling a maximum current of 15A. Each channel incorporates a 50-ohm resistor in series with the inductor. However, this LISN lacks an RF output port and is therefore not suitable forEMC Testing for Consumer ElectronicsThe schematic diagram is shown below.

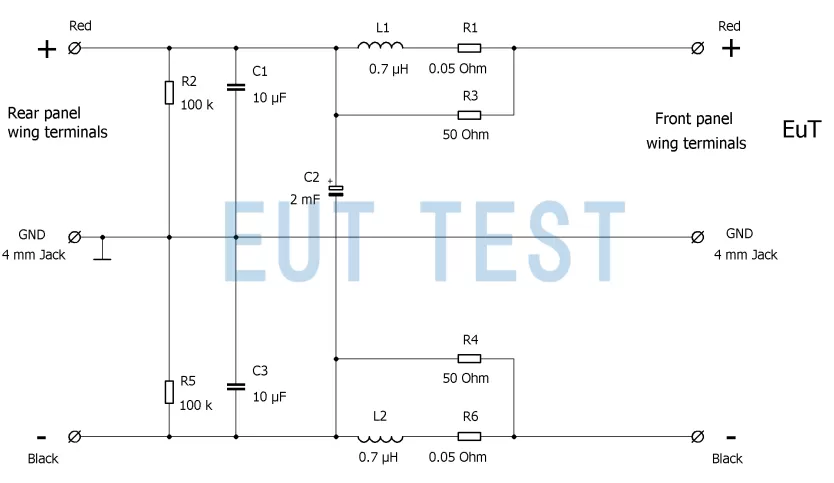

Circuit Design Schematic

This product is distributed by EUTTEST in Shenzhen.

Technical parameters：

Product Specification Sheet:

Calibration test results:

When measuring impedance, the schwarzbeck KA ECSS calibration option is required.

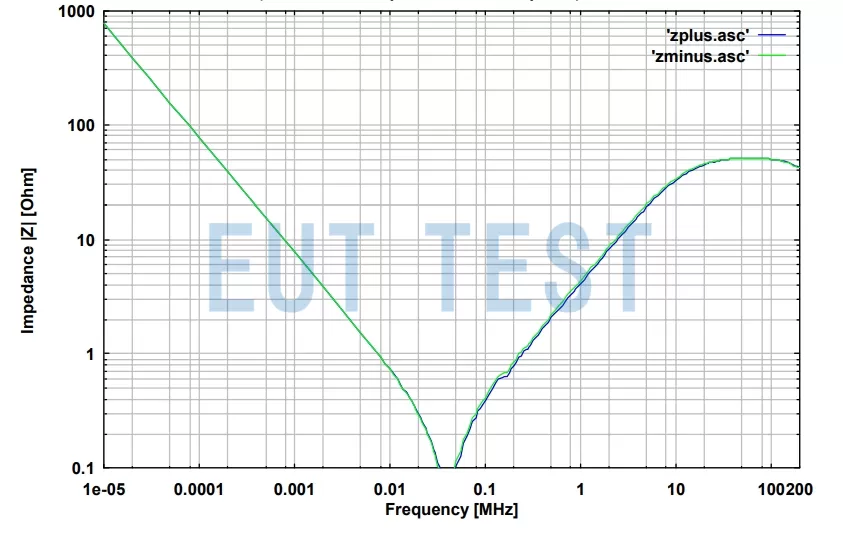

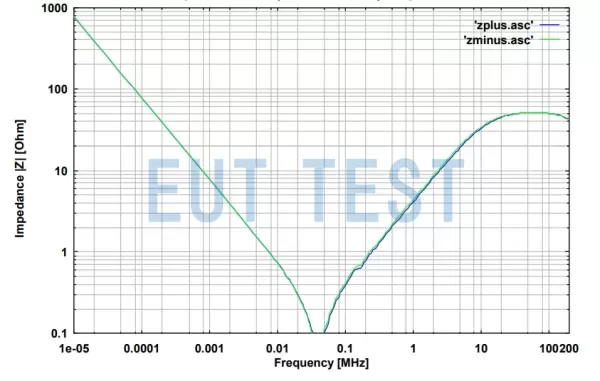

Impedance between the EUT port and the enclosure

Order No. EUTS0864

Schwarzbeck Official Authorized Dealer:

EUTTEST is an official authorized distributor of SCHWARZBECK, whose full official name is: SCHWARZBECK MESS - ELEKTRONIK OHG

Ltd. is authorized by schwarzbeck to sell all products in China and provide technical service for the products sold.

Click to view the image of the authorization
