ETS 2117 RSE Radiated Spurious Test Multi-Axis Positioning System - MAPS

Product Description.

The ETS 2117 is a medium-sized multi-axis positioner product manufactured by ETS-LINDGREN of the U.S.A., referred to in the EMC industry as the MAPS-RSE Radiated Spurious Test Multi-Axis Positioning System, and is designed to provide smooth rotation of the test object in the θ and φ axes. The Model 2117 is constructed of low reflective dielectric material to minimize RF interference or distortion and is designed to minimize EMI noise and provide the least physically disruptive RF field. The motor unit is contained in an RF shielded enclosure designed to be placed below the absorber. The signal line from the motor to the optional positioning controller is fiber optic.

The 2117 is now widely utilized in systems that measure antenna orientation maps and the total effective radiated power ERP of wireless devices, and the MAPS unit is currently operating in several CATL laboratories. Options include a SAM Phantom (head) and an ETS-Lindgren position controller with GPIB and EMQuest software.

ETS 2117 is offered by EUTTEST as an agent for sales, quotations and after-sales service. We can only cooperate in providing this product with theAnechoic chamberSold together and not offered for sale as a separate business.

Product Features:

• 360 degree independent rotation on Theta and Phi axes, continuous rotation on Phi axis
• Angular positioner accuracy better than -0.25, EUT load centered on the axis of rotation
• Transmission shaft rotation
• Convenience socket and coaxial swivel mounted in the center of the turntable
• Suitable for radiated spurious RSE testing
• Testing with or without SAM body die head (optional)
• EMCenter Positioning Controller (required)
• IEEE-488-2 (GPIB) compatible
• Fiber optic control reduces interference
• EMQuest EMQ-100 integrated automated test and measurement software (optional)

Product Parameters:

ETS Comparison of other MAPS products:

EUTTEST also offers many different models of MAPS-Multi-Axis Positioning Systems from ETS-lindgren, as shown in the table below, which is intended for comparison purposes only. If you are interested in this product, please click on the model number for more information.

The MAPS model numbers in the table above can be followed by an additional number -NNNNN: which represents the height of the Phi axis, e.g., the 2117-6000 is a medium-duty MAPS and the Phi axis rotates at a height of 60.00 inches.

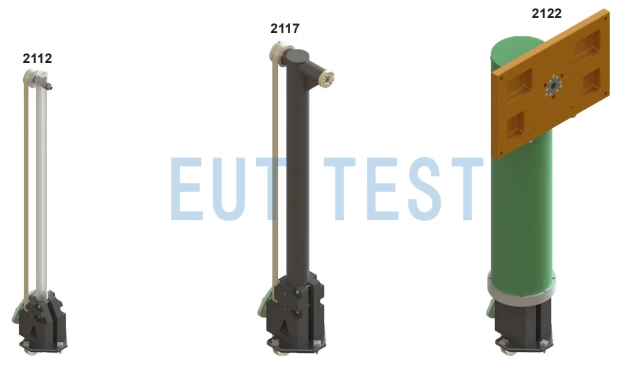

ETS-lindgren's 2112, 2117, 2122 Load Comparison Chart

ETS-lindgren Official Authorized Distributor:

EUTTEST is an official authorized reseller of ets-lindgren, whose full official name is: ETS-Lindgren Inc.(ESCO technology Company)

Ltd. is authorized by ets-lindgren to sell all products in China region and provide technical service for the products sold.

Click to view the image of the authorization
