FMZB 1513-60 B Schwarzbeck Active Loop Antenna 60cm Diameter

Introduction：

FMZB 1513-60 B is an active magnetic field loop antenna produced by Schwarzebck, Germany and authorized by Shenzhen EUTTEST agent sales and quotation service, the antenna diameter of 60cm maximum test frequency up to 30MHz, the loop antenna is designed as an active and antenna coefficient stabilized receiving antenna can be used to test the environment of the magnetic or electric field, so can be used for the test items required by CISPR16-1-4 standards. This loop antenna is designed as an active and stable receiving antenna and can be used to test magnetic or electric fields in the environment, so it can be used for the test items required by the CISPR16-1-4 standard.

More 60cm diameter loop antennas are also available in the following models:

• FMZB 1519-60 C
• FMZB 1519-60 D

Featured Function:

1. The loop antenna is configured with an overload indicator that will illuminate when the received signal is above the antenna's maximum 1 dB compression level (see Figure 1), at which point the OVLD-LED will light up, but this will give false test results.

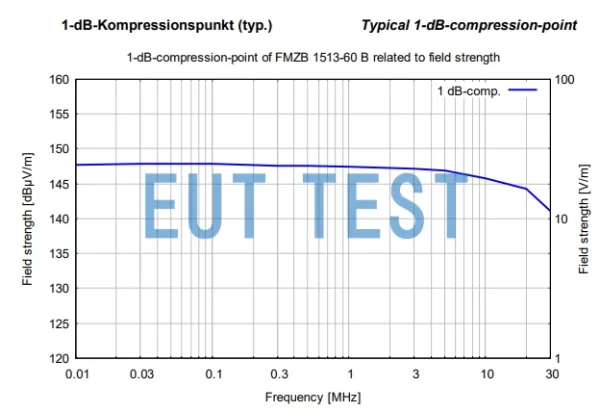

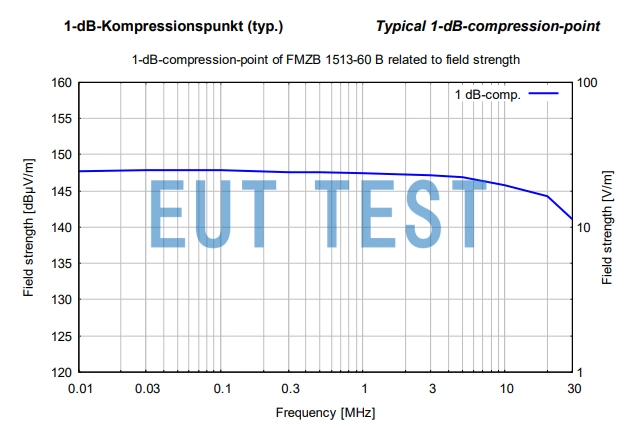

Maximum 1dB compression level

1. Test engineers can use the Opt. FMZB RSM Kit in shielded chambers to extend the overload indicator display range of loop antennas tested in an airwave darkroom.
2. This loop antenna FMZB1513-60B operates from 9kHz to 30MHz, and the noise level can be kept below 55dBμV/m in the center bandwidth of 9kHz and 200Hz.

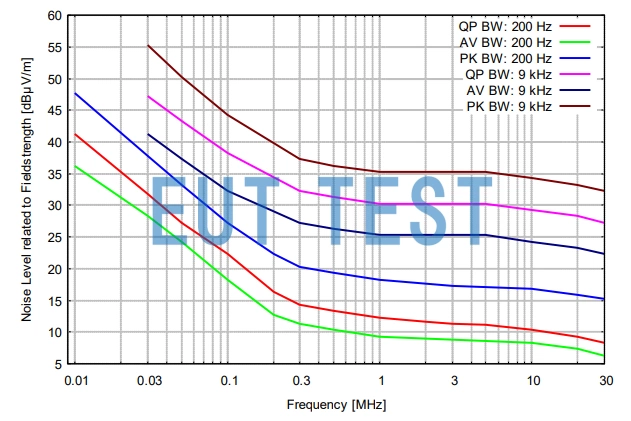

Noise level at IF bandwidths of 9kHz and 200Hz

Technical parameters：

Product Specification Sheet:

Order No. EUTS0408

Schwarzbeck Official Authorized Dealer:

EUTTEST is an official authorized distributor of SCHWARZBECK, whose full official name is: SCHWARZBECK MESS - ELEKTRONIK OHG

Ltd. is authorized by schwarzbeck to sell all products in China and provide technical service for the products sold.

Click to view the image of the authorization
