FSH3D Schwarzbeck Handheld Omnidirectional Magnetic Field Probe

Introduction：

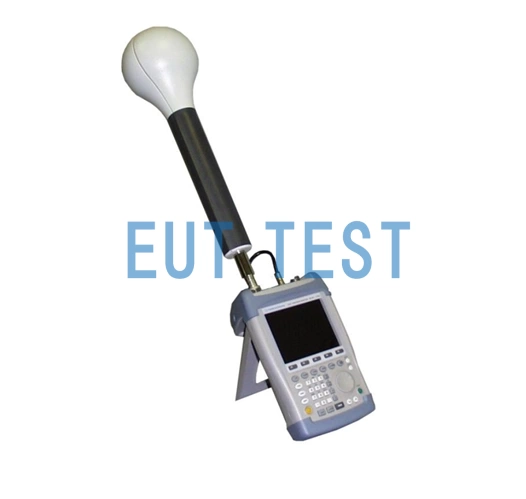

The FSH3D is an isotropic omnidirectional magnetic field probe manufactured by Schwarzbeck, Germany, and authorized for sale by EUTTEST. It can be used as an isotropic magnetic field probe for use with the Handheld Spectrum Analyzer FSH or the TS-EMF test system manufactured by R&S, Germany. The probe is lightweight and features a low attenuation grating with an outer diameter of approximately 150 mm. The antenna is powered directly from the short cable attachment included with the R&S FSH.

If you want to measure the electric field, purchase : Schwarzbeck FSE3D

Usage:

The FSH 3D Magnetic Field Probe consists of three identical shielded loop antennas that are vertically aligned with each other. The shielding unit follows closely behind and contains the switching and amplifier circuitry which is directly connected to the N-male outputs, powered by the Spectrummeter FSH connector with power and logic signals, which allows the tester to select the desired test axis measurement via logic signal commands.

The probe can only grab data, you will also need to use the data from the Rohde & Schwarz The popular handheld spectrum analyzers FSH3/6 and FSH 4/8 perform readout of the probe's test data.

This magnetic field probe is equipped with an RF transparent cover to protect it from dust and moisture. Due to its lightweight construction, the probe can be mounted directly on top of a spectrum analyzer and then hand-held to measure magnetic field components in the field environment. You can also attach the probe manually to a 50 mm shaft (scanning method) or to a mast or tripod using 22 mm tubing (rotating or grid method).

Technical parameters：

Product Specification Sheet:

Graph of related technical parameters：

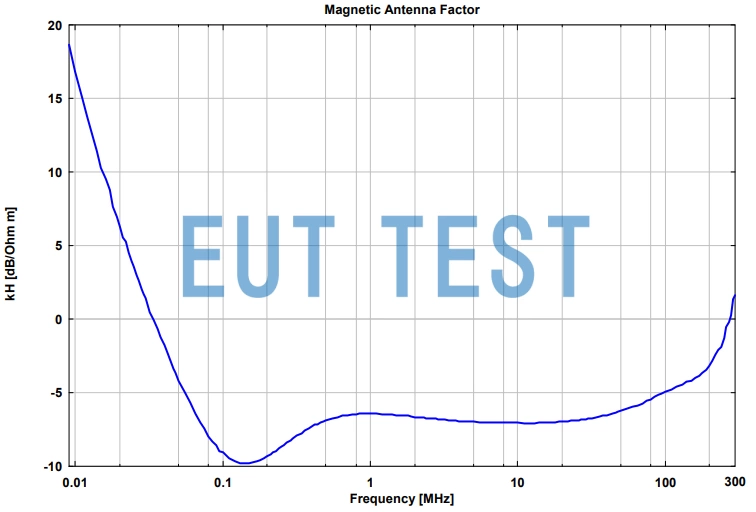

Magnetic field antenna coefficient plot

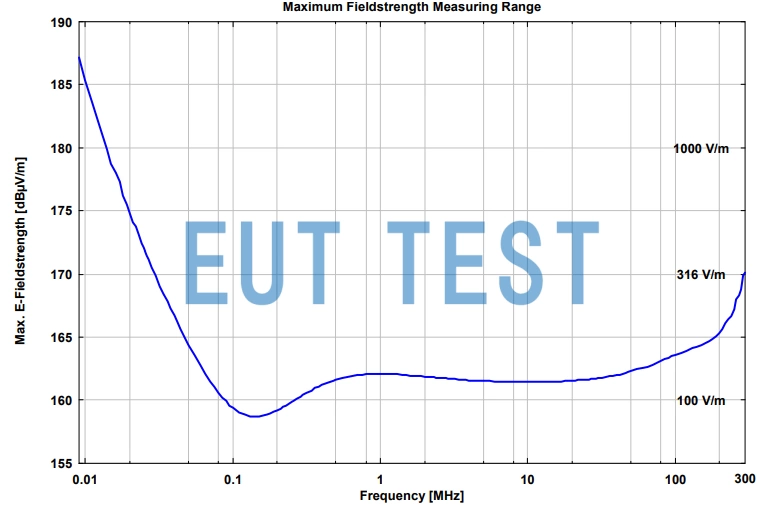

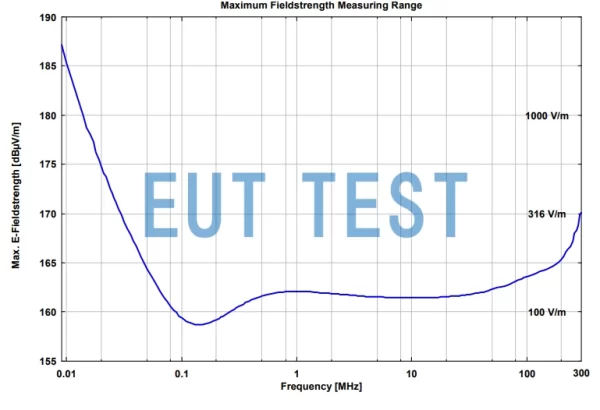

Plot of maximum measurable electric and magnetic fields
