Introduction：
The HFRA 5146 tunable resonant magnetic loop antenna is one of the loop antennas produced by Schwarzbeck in Germany and authorized for sale by EUTTEST in Shenzhen, China. This antenna is capable of testing in the frequency range of DC-200 KHz, and also provides a switch to control the testing of the 15 MHz frequency point alone, and the input impedance at 15 MHz has been adjusted to 50Ω.
Technical parameters：
Product Specification Sheet:
“Reminder: swipe tables left and right”Antenna Model
HFRA 5146
manufacturer
Schwarzbeck
China Agent Sales
EUTTEST
Test frequency range
DC-200kHz
and 15MHz
and 15MHz
Number of coils
2
Diameter of the ring antenna
300mm
Maximum Input Current
20A
Magnetic field strength of 1A current
6.67 A/m
15MHz Frequency - Input Impedance
50Ω
15MHz frequency - Input power
10W/40dBm
15MHz Frequency - Maximum Input Power
20W/43dBm
15MHz frequency - VSWR
1
Input Connector
N
Antenna Size
410*315*50mm
weight
430g
Mounting Bracket
AM9144

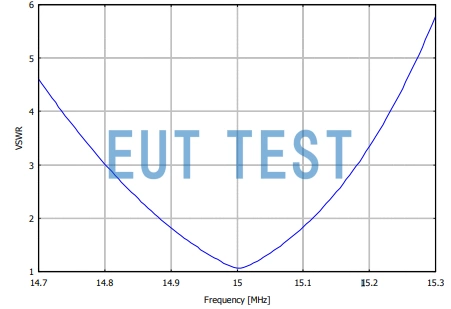

Voltage Standing Wave Ratio Graph - VSWR
Order No. EUTS0663
