HI-3604 ETS-LINDGREN Industrial Frequency Magnetic Field Meter

Product Description:

The ETS HI-3604 Industrial Frequency Field Strength Measurement System is designed to assist in the evaluation of electric and magnetic fields associated with 50/60 Hz power transmission and distribution lines as well as power-driven equipment and appliances. Since its test frequency range covers 30Hz-2000Hz, it is also known as a low-frequency electric and magnetic field strength meter in the industry, and is supplied by the U.S.-based ETS-lindgren Corporation, and is Authorized by Shenzhen EUTTEST agent sales and quotation service.

Basic Functions:

Electromagnetic field field strength can be directly displayed digitally on the front end of the instrument, but also through the fiber optic remote control (see options below) remote readout of the instrument and read the measured electromagnetic or magnetic field strength value, you can avoid the test personnel close to the source of radiation. For example, when the measurement of high voltage power transmission cable frequency magnetic field test, the HI 3604 field strength probe host and we match for you with the remote reading option, you can install the test host to the high voltage cable nearby, to ensure the safety of the test personnel, if the use of more than one set of 3604 IF field strength measurement system is configured to the transmission line of the multiple test points, you can at the same time remotely obtain the test point of the electromagnetic field strength of these values. value.

In summary, the 3604 Low Frequency Electric and Magnetic Field Strength Meter is widely used in applications that require knowledge of theindustrial frequency field strengthIt is designed to provide engineers, industrial hygienists, and health and safety personnel with a state-of-the-art tool for the accurate investigation of industrial frequency power environments.

To use, place the industrial frequency magnetic field measuring instrument provided by us at the human body position in the figure below, and let the magnetic inductance pass through the measuring instrument to obtain the low frequency electric field and magnetic field test data of three-phase cables.

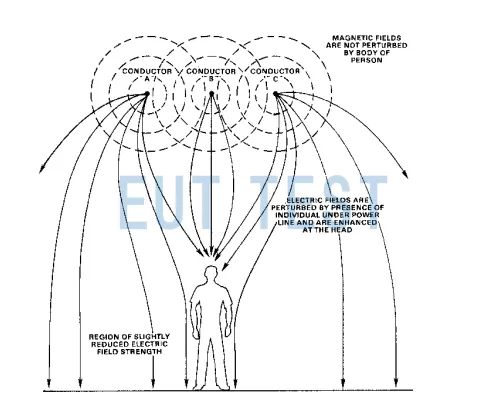

Demonstration diagram of the magnetic field of a three-phase cable on the human body

Technical parameters：

Product Specification Sheet:

Other options:

In order to allow the magnetic lines of force to pass through the loop of this EMF probe, you may also need to configure a tripod or vertical stand to allow the probe to easily change the measurement direction and height, all of these requirements, EUTTEST can customize the test solution for customers, welcome to contact us for more information.

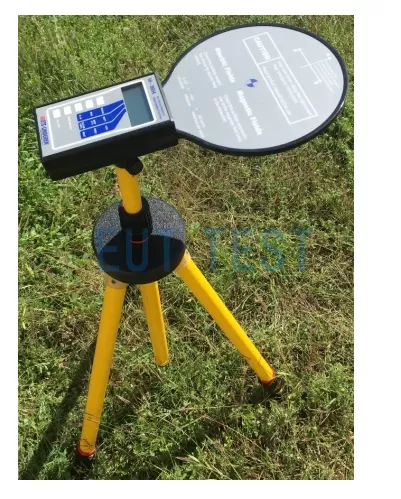

Electromagnetic field probes configured with EUTTEST customized tripods

Order No. EUTS0844

ETS-lindgren Official Authorized Distributor:

EUTTEST is an official authorized reseller of ets-lindgren, whose full official name is: ETS-Lindgren Inc.(ESCO technology Company)

Ltd. is authorized by ets-lindgren to sell all products in China region and provide technical service for the products sold.

Click to view the image of the authorization
