HS 3D-SENS50T1 SCHWARZBECK 3D Magnetic Field Sensor Probe

Product Description:

HS 3D-SENS50T1 is a three-dimensional magnetic field sensor probe manufactured by schwarzbeck in Germany for testing DC magnetic fields. The probe has a built-in XYZ three-axis magnetic field sensor inside the probe, which can be used to measure each of the three axes separately. HS 3D-CONTROL When using a 3D magnetic field meter, you also need to be careful to use it in the direction indicated by the XYZ axes on the top of the probe.

HS 3D-SENS50T1 XYZ direction on top of the probe

Technical parameters：

Product Specification Sheet:

Linearity:

HS 3D-CONTROL has a consistent and smooth linearity in both XYZ axes, and in particular it meets this feature from 10,000 A/m to 40,000 A/m.

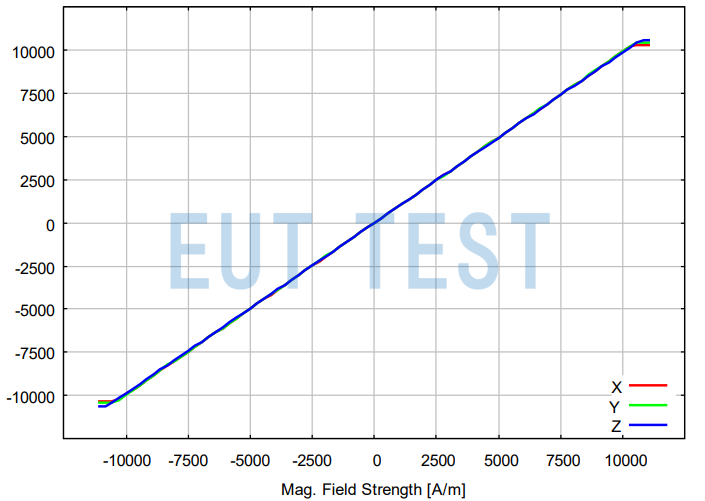

HS 3D-CONTROL Linearity at 10,000 A/m Measurement

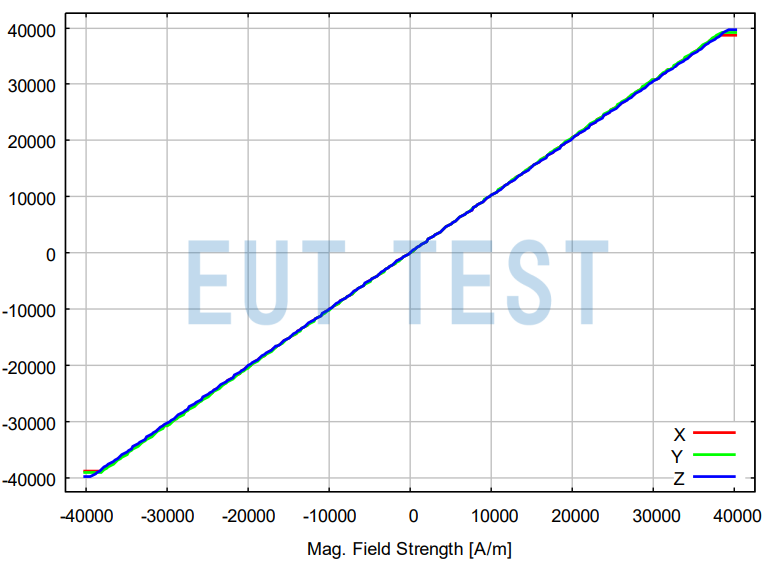

HS 3D-CONTROL Linearity at 40,000 A/m Measurement

Order No. EUTS0747
