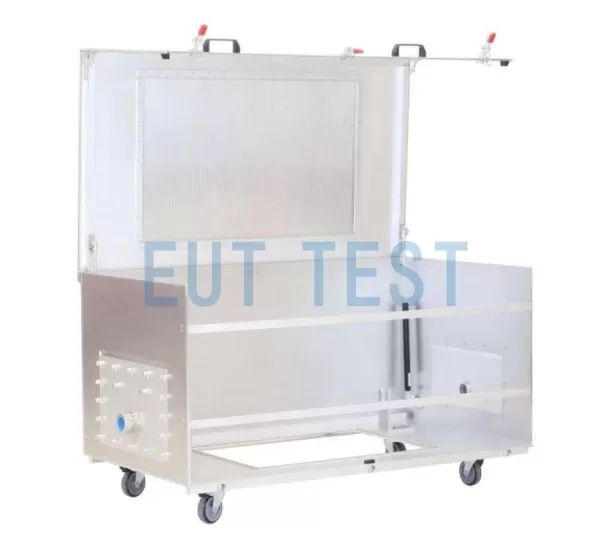

HVSE 8602 Schwarzbeck CISPR25 High Voltage Shielded Box 1600A

Product Description:

HVSE 8602 is a high-voltage shielded box produced by Schwarzbeck, Germany, designed for electric vehicle parts users with more than 800A current requirements, this product is in line with CISPR25 ED4.0 standard, in order to meet the product's maximum operating current of 1600A, we have chosen to use high-voltage die-cast shielded connectors, you can shield the product's power cord directly crimped to our high-voltage input/output ports, and you can also ground the LISN on the shielded box enclosure to minimize loop interference. You can crimp the power cable directly to the high-voltage input/output ports of our shielding box, and you can also ground the LISN nearby on the shielding box shell to reduce loop interference.

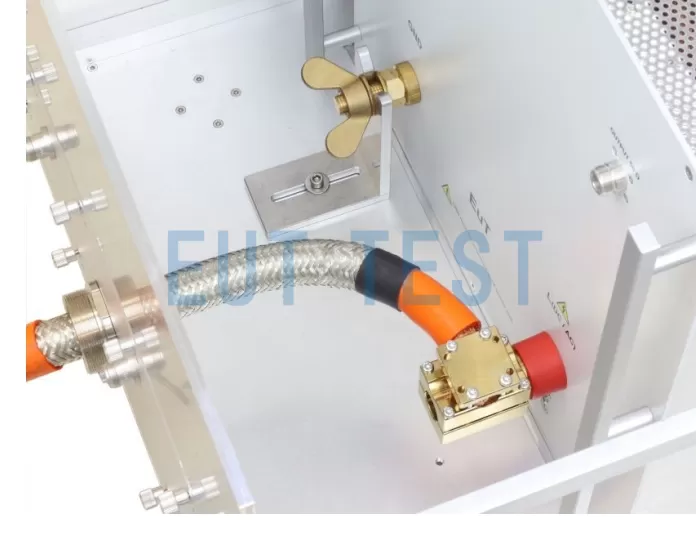

High Voltage Resistant Connectors and Proximity Grounding for HVSE 8602

The 8602 high-voltage shielding box is currently only available as a schwarzbeck LISN, LISN part number:

NNHV 8123-1600

Normally you need two high voltage LISNs inside the shielding box. Considering that the combined weight of the shielding box and the LISNs is more than 150 kg, we have also equipped the product with four removable pulleys.

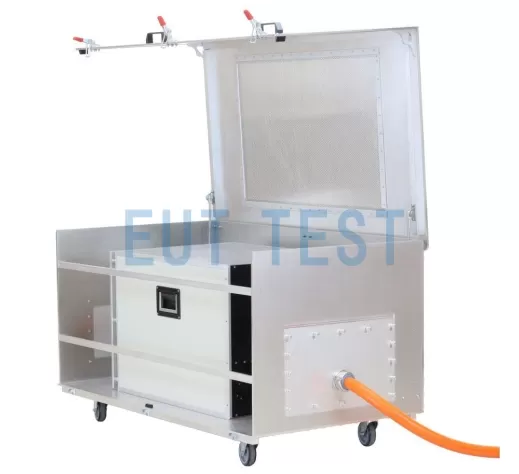

8602 High Voltage Shielded Box with two NNHV 8123-1600 placed inside.

Product Parameters:

The above optional accessories need to be selected according to the actual needs, contact us for more information.

Order No. EUTS0785
