Introduction：
HXYZ 9170 3m is a 3m diameter tri-loop antenna produced by Schwarzbeck and sold by EUTTEST, which meets the requirements of CISPR16, EN 55015, CISPR15, GB 17743 and other standards. When the 2m diameter tri-loop antenna is not enough, it can be used with a larger diameter according to the requirements of CISPR15. Therefore, this 3-meter diameter three-ring antenna is more suitable for testing the magnetic field emission current of large lamps and LEDs and other similar devices in the frequency range of 9kHz-30MHz.
General lighting products can be tested with only a 2m diameter 3-ring antenna: HXYZ 9170 The
Technical parameters：
Product Specification Sheet:
“Reminder: swipe tables left and right”- Attenuation: <0.5dB 9kHz-30MHz
- Leakage >45dB 9kHz-30MHz
- Recommended use AM9144 + CDA 9271 antenna tripod support HFCD 9171
- HXYZ 9170 Sockel: 3-Ring Antenna Bracket
- HXYZ 9170 Umschaltbox: 3-in-1 switch
- HXYZ 9170 RS USER Adapter: 25-Pin Switch Selector Adapter
- HXYZ 9170 RS AUX Adapter: 9-Pin Switch Select Adapter
Graph of related technical parameters：

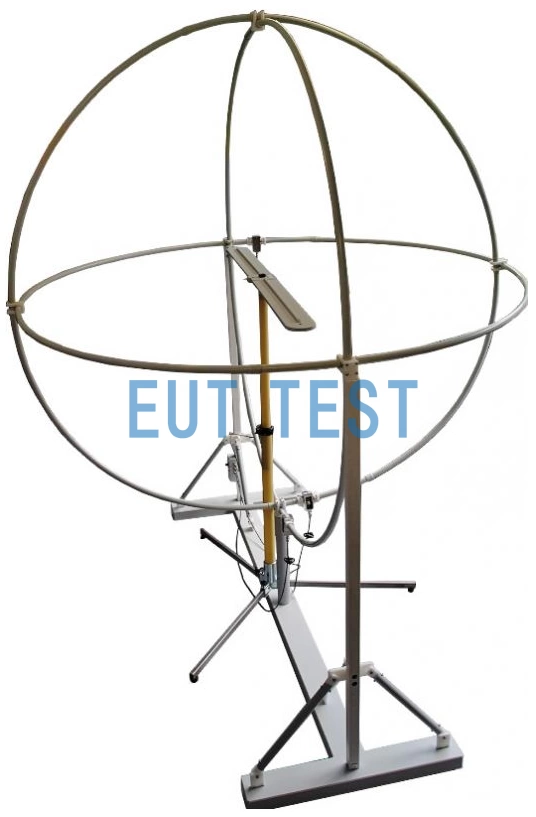

Test Configuration Diagram for Calibration with HFCD 9171

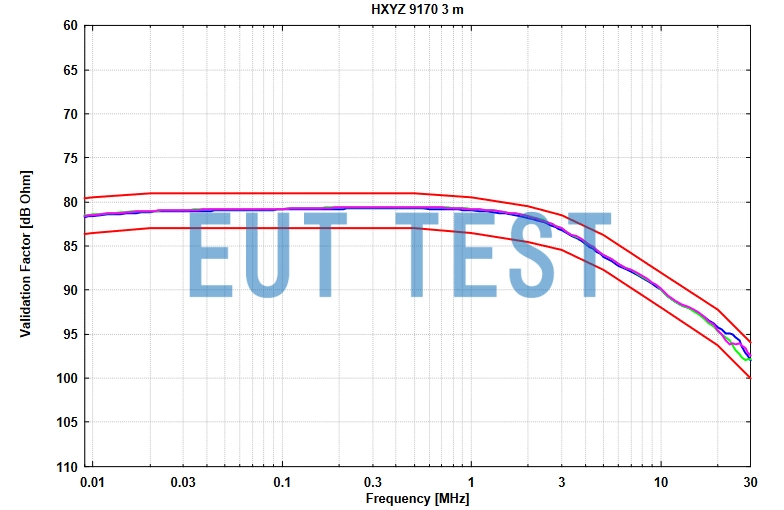

Validation factor
Order No. EUTS0380
EUTTEST is an official authorized distributor of SCHWARZBECK, whose full official name is: SCHWARZBECK MESS - ELEKTRONIK OHG
Ltd. is authorized by schwarzbeck to sell all products in China and provide technical service for the products sold.
