NNBL 8226-2 Schwarzbeck Linear Impedance Stabilization Networks

Introduction：

NNBL 8226-2 is produced by SCHWARZEBCK and authorized by our agent sales of military artificial power network test equipment, the LISN adopts a two-wire design, the testers need only one can complete the military electronic spare parts of the positive and negative test EMC, and configured with two BNC ports to output the conductive emission signals of the samples under test to output to the external receiver test CE102.

The LISN is also designed with 50µH+5Ω impedance and complies with the latest version of AFSL and NATO EMC test standards, as shown in the technical data table below.

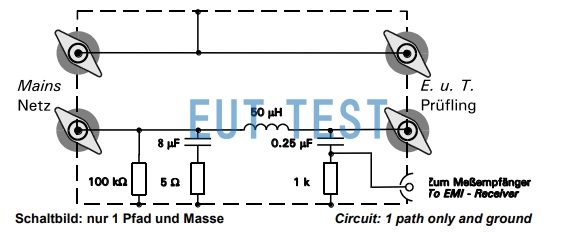

Circuit Impedance Schematic

Technical Parameter Sheet:

For more information about NNBL8226-2, please contact us to get more information.
