NNBL 8230 Schwarzbeck Linear Impedance Stabilization Network 300A Current

Introduction：

The NNBL 8230 is one of the test instruments produced by Schwarzbeck and authorized for sale by our company under the name of LISN-Linear Impedance Stabilization Network. The LISN supports a maximum working current of 300A for DUT, you can even use it up to 500A in a short time, and it can be used to test the military equipments up to the conventional voltage of 250V, but it can only work in the range of 30MHz, so it is also designed according to the CISPR16-1-2, but it also meets the military standard requirements, so the LISN is mainly positioned as follows It is used to test the EMC of military electronic products that work with utility power.

The LISN is designed with 50µH+5Ω impedance and complies with the latest version of AFSL and NTSC EMC test standards, which are listed in the technical data table below.

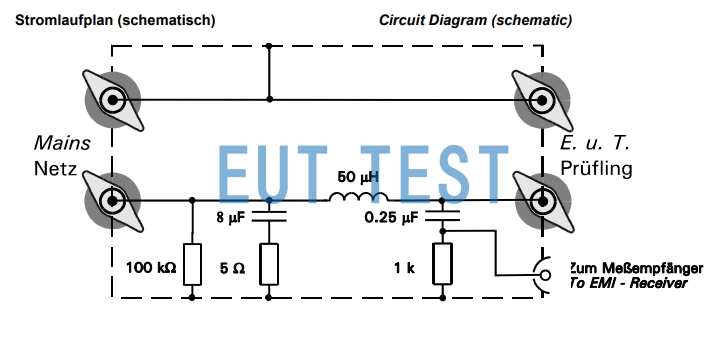

Impedance Design Schematic

Technical Parameter Sheet:

For more information about NNBL8230, please contact us for more information.
