NNBL 8240 Schwarzbeck Linear Impedance Stabilization Networks 300A Current

Introduction：

NNBL 8240 is a military test LISN - Linear Impedance Stabilization Network manufactured by Schwarzbeck and authorized to be sold by our company. This LISN supports military electronics testing in the current range of 800A-1000A for CE102, and the test voltage is up to 1000VDC. This is the maximum working current and working voltage military LISN provided by Schwarzbeck, you need to purchase the right LISN according to the test requirements, contact us for help information.

The LISN is designed with 50µH+5Ω impedance and complies with the latest version of AFSL and NTSC EMC test standards, which are listed in the technical data table below.

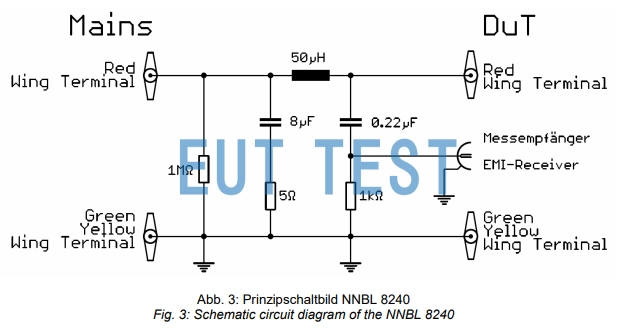

Impedance Design Schematic

Technical Parameter Sheet:

For more information about NNBL8240, please contact us for more information.

Schwarzbeck Official Authorized Dealer:

EUTTEST is an official authorized distributor of SCHWARZBECK, whose full official name is: SCHWARZBECK MESS - ELEKTRONIK OHG

Ltd. is authorized by schwarzbeck to sell all products in China and provide technical service for the products sold.

Click to view the image of the authorization
