NNBM DO-160-800 Schwarzbeck LISN for Aircraft and Ships

Product Description:

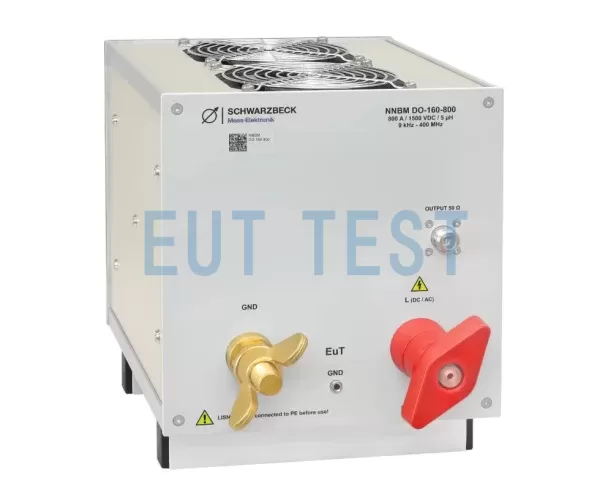

The NNBM DO-160-800 is an aircraft and marine-specific LISN from Schwarzbeck, Germany, for 5 µH || 50 Ω as required by the DO-160 and DEF-STAN-59 standards. Artificial Power NetworksRequirements, support a maximum of 1500V DC voltage and 800A current, as a special LISN for avionics, you can easily connect the EUT power cord to the red screw of this LISN, and also can be grounded nearby, in addition, in order to meet the demand of three-phase testing, you can also use four parallel testing. Provide us with your requirements and EUTTEST will customize an avionics EMC test solution that meets the DO-160 standard.

Impedance curves:

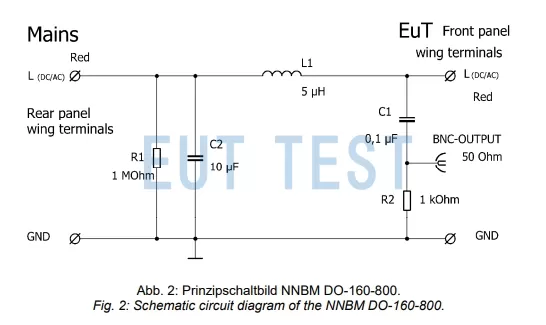

This LISN NNBM DO160-800 is designed using the 5 µH parallel 50 Ω circuit principle, and the impedance of the EUT port measured with a network analyzer meets the requirements of the DO-160 standard.

DO-160 compliant LISN impedance 5 µH in parallel 50 Ω

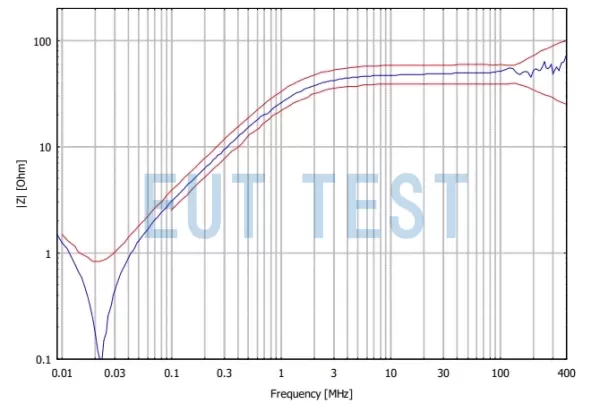

The EUT port impedance of the NNBM DO-160-800 is within the red line of DO-160 requirements

Technical parameters：

Product Specification Sheet:

Caveats:

WARNING, use of this LISN involves high voltage and high current operation and must be EUTTEST trained before operation.

In addition, when the current exceeds 200A, the heat dissipation function must be turned on for the LISN using our configured power adapter.

Order No. EUTS0790
