NNHV 8123-1600 High Current and High Voltage Artificial Power Networks for Automotive Electronics

Product Description:

The NNHV 8123-1600 is Schwarzbeck's newest artificial power network for automotive electronics in 2025 with the highest currents and voltages, specifically designed forNNHV 8123-800Version LISN also can not meet the test requirements of the use of up to 1600A transient current and 2000V DC voltage, fully meet the industry's latest requirements for automotive electronic components CISPR25 standard. For more information, please refer to the technical data sheet below.

Circuit Design Schematic:

This LISN is designed using the principle of 5 µH in parallel with 50 Ω and a 0.1 µF filter capacitor is placed, more component parameters are shown in the figure below.

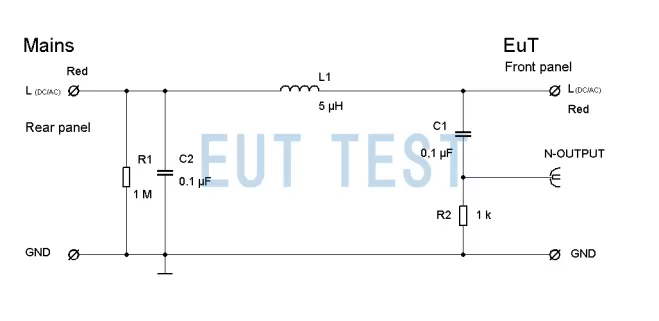

Circuit schematic

Technical parameters：

Product Specification Sheet:

Technical data charts:

The EUT port impedance of this LISN meets the requirements of the CISPR16-1-2 standard.

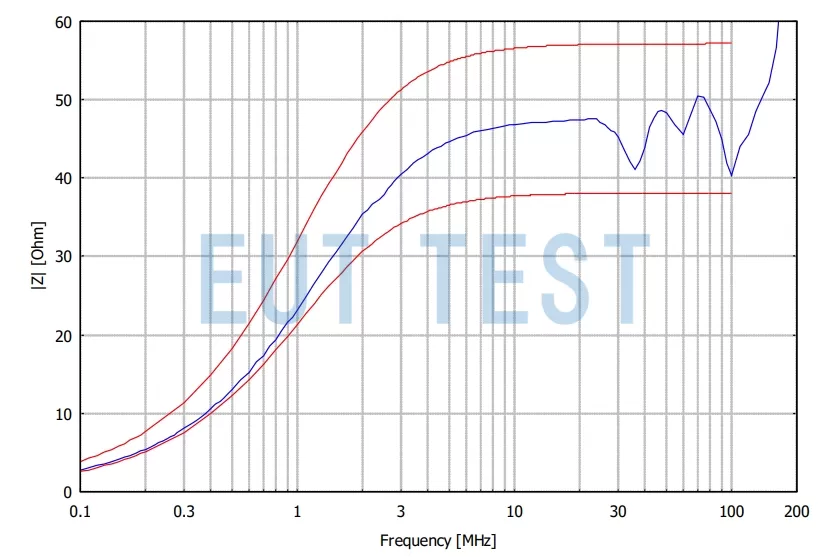

EUT Port Impedance Diagram

We will provide complete dividing factor test data at the factory.

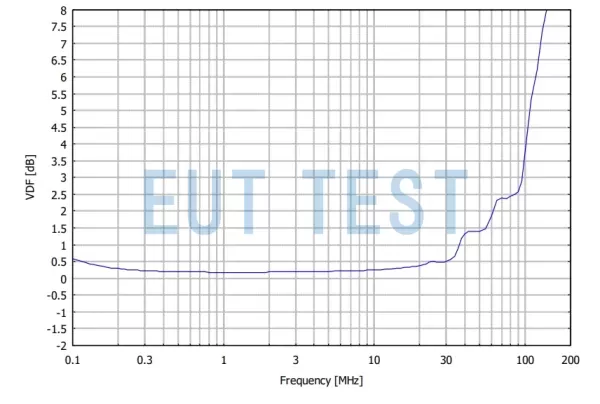

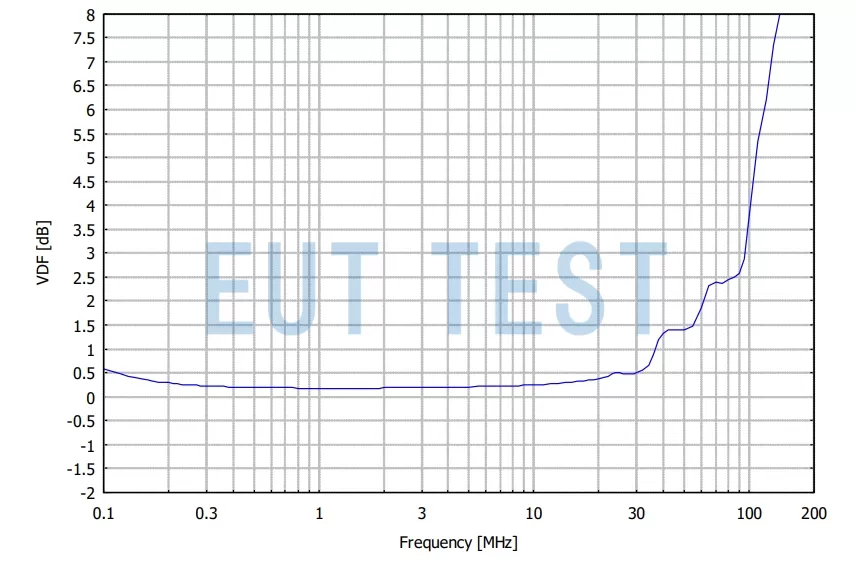

Partial pressure coefficient diagram

Order No. EUTS0788
