NPLC 8500 ITU-T G 9901 compliant linear impedance network

Product Description:

The LISN NPLC 8500 was designed by Schwarzbeck Germany for the ITU-T G.9901 PLC measurement standard, which requires that in order to determine the power spectral density of the PRIME transceiver (PoweRline Intelligent Metering Evolution), the conductor to ground ratio be measured over a frequency range of 3 kHz to 148 kHz.asymmetrical voltage. This product is represented by Shenzhen EUTTEST for sales and quotation services. It is important to note when using the NPLC8500 that due to the high leakage currents, the NPLC8500 is designed so that it has to be connected to a Residual Current Operated Circuit Breaker (RCD) as the RCD will immediately break the circuit.

Technical parameters：

Product Specification Sheet:

The NPLC8500 has different voltage divider coefficients at different frequency positions, as can be seen in the figure below, the voltage divider coefficient S21 is -6dB when measured at low frequencies using a network analyzer, and infinitely converges to 0dB, or 0 loss, when it comes to high frequencies.

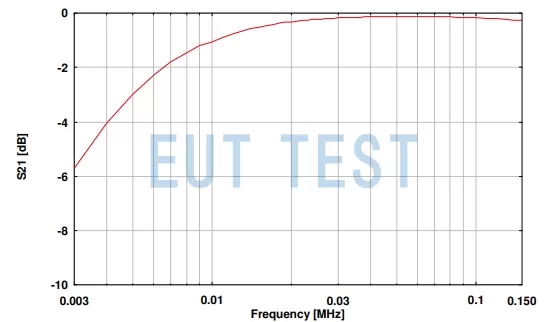

schwarzbeck NPLC 8500 Parameter diagram for partial pressure coefficient S21

EUTTEST will provide the factory data of this product with the shipment, and you need to match it with thespectrum analyzerrespond in singingEMC Test Softwareto complete the measurement.

Order No. EUTS0819

Schwarzbeck Official Authorized Dealer:

EUTTEST is an official authorized distributor of SCHWARZBECK, whose full official name is: SCHWARZBECK MESS - ELEKTRONIK OHG

Ltd. is authorized by schwarzbeck to sell all products in China and provide technical service for the products sold.
