PVSM 8320 Schwarzbeck IEC 63027 Symmetrical DC Networks

Product Description:

The PVSM 8320 is a symmetrical DC network from Schwarzbeck that meets the three main requirements of the IEC 63027 standard for decoupling networks, array linear impedance networks, and linear impedance networks, and can be used as a photovoltaic simulator for devices up to a maximum photovoltaic power circuit voltage of 250 V DC.

The PV power model represents a combination of DC power supply, decoupling network, and array and line impedance. Four different PV power models are defined depending on the application and test setup:

(1) Semi-string model.
(2) Full string model.
(3) Module-based modeling.
(4) Parallel string modeling.

Technical parameters：

Product Specification Sheet:

When used as a decoupling network, thecommon-mode (electronics)The decoupling coefficients are shown below

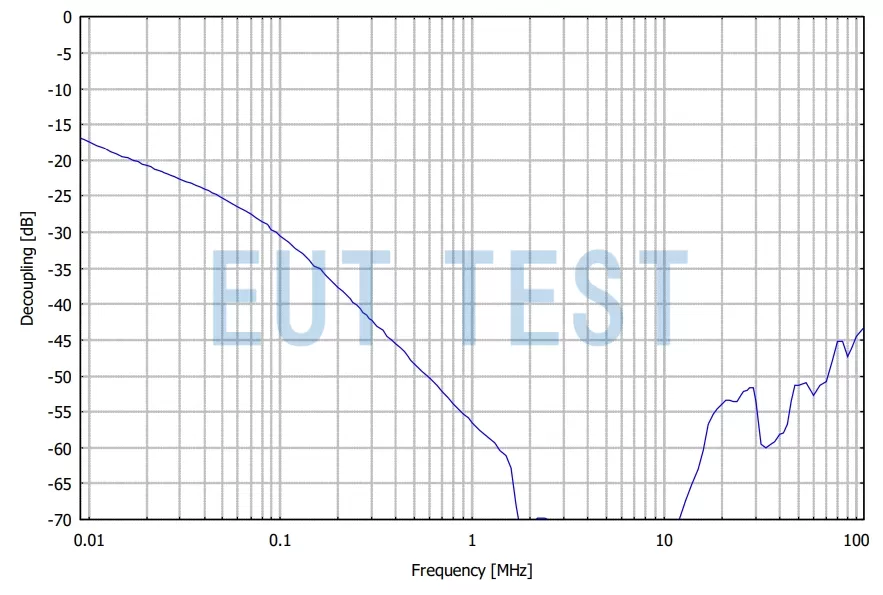

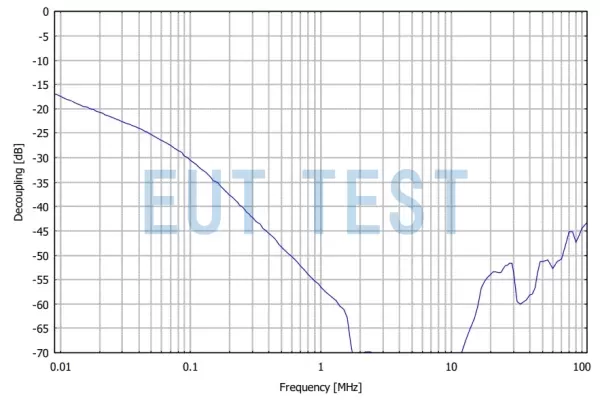

Decoupling factor (common mode) for EUT and feeder ports of PVSM 8320

Order No. EUTS0794
