Product Description:

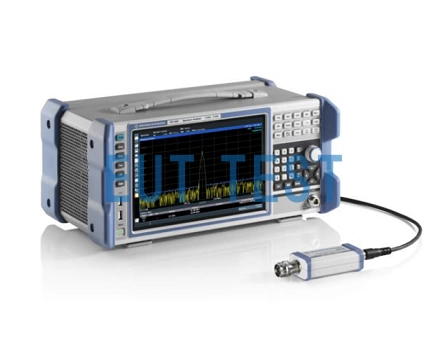

FPL1000 Sequence Spectrum Analyzer is produced by Rohde&schwarz, Germany and authorized by EUTTEST agent sales of spectrum analyzers, the maximum test frequency of up to 26.5GHz, more 3GHz, 14GHz and other test frequency range can be selected, check the technical parameters of the FPL Sequence Spectrum Analyzer below.

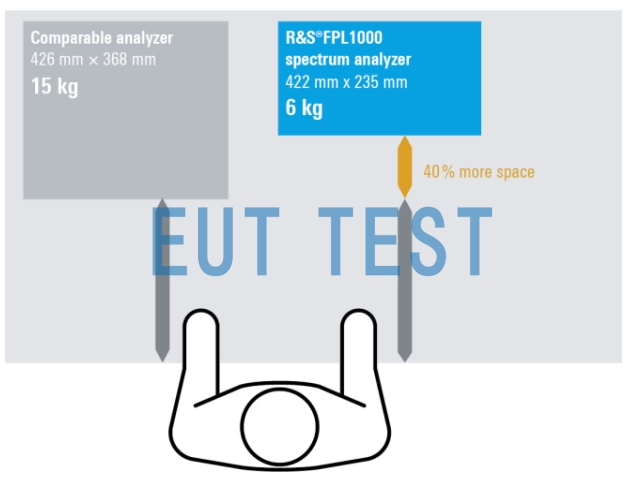

The miniaturized design of the FPL1000 Sequence Spectrum Analyzer has less depth than typical benchtop spectrum analyzers, giving testers more room to maneuver.
FPL1000 Sequence Spectrum Analyzer has less depth than typical benchtop spectrum analyzers
Technical parameters：
Product Specification Sheet:
“Reminder: swipe tables left and right”Selection of model according to test frequency
FPL1003: 5kHz-3GHz
FPL1007: 5kHz-7.5GHz
FPL1014: 5kHz-14GHz
FPL1026: 5kHz-26.5GHz
FPL1007: 5kHz-7.5GHz
FPL1014: 5kHz-14GHz
FPL1026: 5kHz-26.5GHz
Product name
Lightweight Spectrum Analyzer
manufacturer
R&S
China Agent Sales
Shenzhen EUTTEST
functionality
frequency domain analysis
power meter
Analog and digital signal analysis
General purpose signal analysis and demodulation
EMI debugging test at R&D stage (collocation)Near field probe)
power meter
Analog and digital signal analysis
General purpose signal analysis and demodulation
EMI debugging test at R&D stage (collocation)Near field probe)
distinctiveness
Minimum depth is only 23.5cm
Handheld and low weight
Optional battery pack for over 3 hours of operation
Optional 12V/24V DC power supply
Handheld and low weight
Optional battery pack for over 3 hours of operation
Optional 12V/24V DC power supply
Display average noise level
-166dBm
spurious response
<-70dBc
Analyzing bandwidth
10MHz
phase noise
-108dBc
Standard Attenuation Range
45dB
attenuation step
5dB.
Optional 1dB step option available, contact EUTTEST for information
Optional 1dB step option available, contact EUTTEST for information
