TEMP 8400 Schwarzbeck Symmetric Artificial Power Networks

Product Description:

TEMP 8400 is a symmetrical artificial network product produced by SCHWARZBECK company in Germany, authorized by Shenzhen EUTTEST to provide product quotations and after-sales service, the TEMP 8400 consists of two identical measurement channels for lines "A" and "B". The TEMP8400 consists of two identical measurement channels for lines "A" and "B". Due to the use of air-core inductors for the two channels inside the artificial network, intermodulation interferences have been greatly reduced, and we can use this device to measure line-to-ground interference in the frequency range from 9 kHz to 1 GHz.asymmetrical interference voltage (AIV)Low-frequency interferences that may cause damage to the measurement receiver input during the actual measurement should be filtered with an additional high-pass filter. VTSD 9563 Perform mitigation.

Technical parameters：

Product Specification Sheet:

Optional EUT connector accessories are available:

TEMP LISN Connect the EUT using N-type connector terminals "A" and "B".

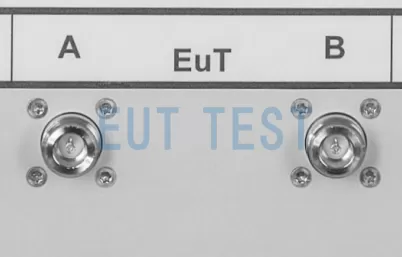

Connecting the EUT using the N-type connector

However, when actually connecting, the N terminal is not convenient to use. Therefore, it is necessary to contact EUTTEST to purchase the appropriate EUT cable adapter: TEMP 8401, TEMP 8401 DE, TEMP 8401 GB, three terminals can be completed from the N-type connector to the M7, BS1363, CEE 7/3 type of adapter. For example, if you purchase the TEMP 8401 GB adapter, you can realize the connection effect as shown in the figure below, so that you can directly connect the power plug of the DUT.

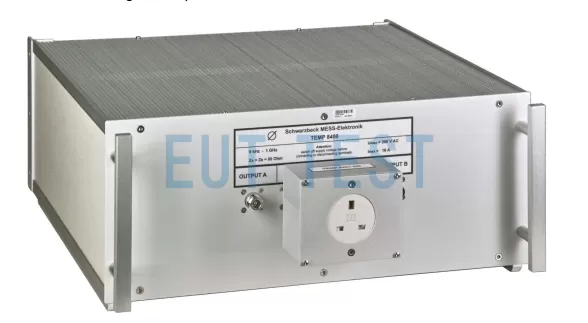

TEMP8400 Optional TEMP 8401 GB Adapter

Note: TEMP8400 When using the adapter, the EUT allows a maximum continuous current of 16 A. At 50 Hz and 25 °C, the voltage drop is about 22 V, short-time currents of up to 25 A are possible, and the temperature of the integrated inductor must not exceed 150 °C when the current exceeds 16 A. The temperature of the integrated inductor must not be exceeded.

Order No. EUTS0818

Schwarzbeck Official Authorized Dealer:

EUTTEST is an official authorized distributor of SCHWARZBECK, whose full official name is: SCHWARZBECK MESS - ELEKTRONIK OHG

Ltd. is authorized by schwarzbeck to sell all products in China and provide technical service for the products sold.
