VHFB 8801 Schwarzbeck VHF linear impedance stabilization network

Product Description:

The VHFB 8801 is Schwarzbeck's new customized VHF Linear Impedance Stabilized Network device for the end of 2025. EUTTEST now offers a choice between a balanced VHF-LISN (VHFB8801) and an unbalanced VHF-LISN (VHFU 8802), which is plugged in to the radiated The VHF-LISN is inserted between the power outlet of the interference test site and the AC power cord of the equipment under test, where the cable leaves the test area.

The VHFB-8801 is a balanced VHF linear impedance stabilizing network compliant with the CISPR 16-1-4 / Ed. 5 test standard. The device presents the same impedance (symmetrical) to each terminal of the DUT's AC power cable to produce a balanced load, which can be used as aCMAD 1614 The alternative equipment.

Technical parameters：

Product Specification Sheet:

The VHFB-8801 has good isolation between each line, see S21 test chart below for detailed isolation data

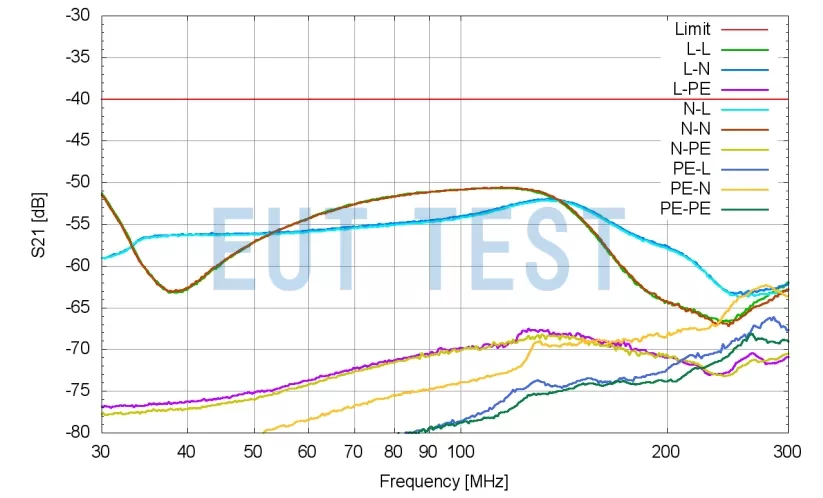

Typical Isolation S21 Test Chart for VHFB 8801

Terminal impedance:

Each line of the Linear Impedance Stabilization Network 8801 has its own impedance and phase, we can organize the data comparison table as shown in the table below, of course, we will provide the factory calibration data of the impedance and phase of the L and N lines together with the shipment, contact us for a product quotation and a detailed calibration data report.

Order No. EUTS0833
