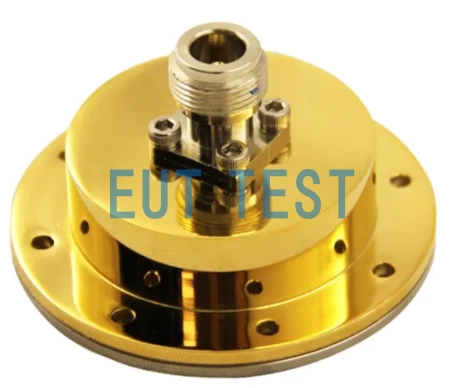

A4001 ESDEMC Electrostatic gun Discharge current calibration target

A4001 Calibration test chart for current target

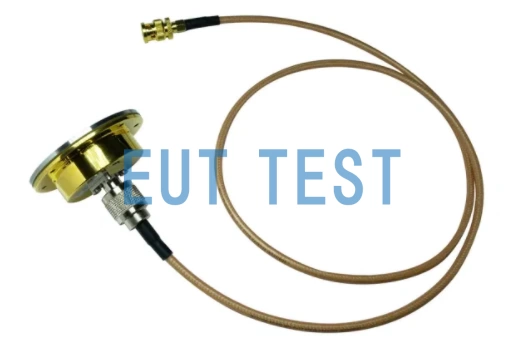

Complete set of calibration accessories for A4001

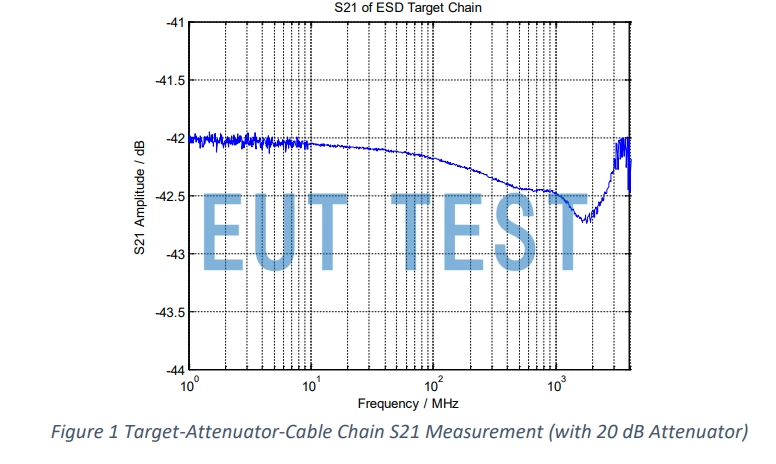

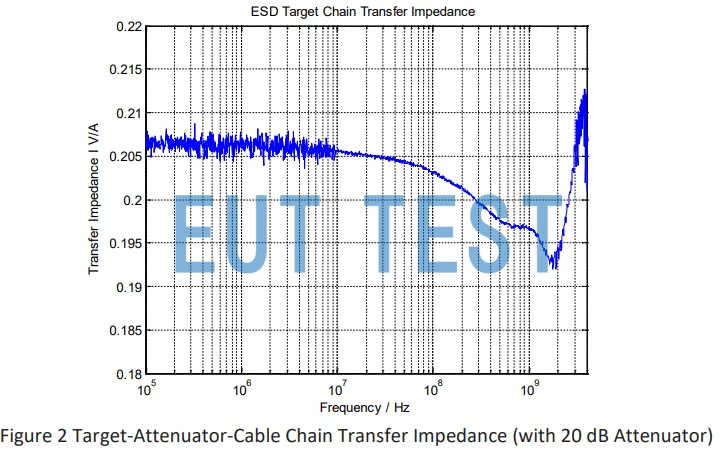

A4001 Transmission impedance of current target

Order Number: EUTS0150

Type: Electrostatic discharge-current target

Brand: ESDEMC

Min. order: 1 Unit

Stock: 0

Delivery: 15 weeks

Standards:

IEC 61000-4-2

Industry： General Electronics

Warranty: Original Import ; New Products ; Authorized Sales

Training: On-site training; Telephone; Email

Logistics: Shenzhen to National

Payment: Internet Banking T/T

Product Price:

Introduction：

A4001 is a calibration target for electrostatic discharge current produced by ESDEMC and distributed by EUTTEST in Shenzhen, China.

There are several brands of electrostatic discharge guns on the market, which need to be calibrated according to the standards IEC61000-4-2-2008 and GBT 17626.8-2018 for the waveform calibration of electrostatic discharge current of electrostatic guns, and in addition to the ISO 10605 standard for automotive electronics in the electrostatic guns also need to be calibrated.

List of standard features:

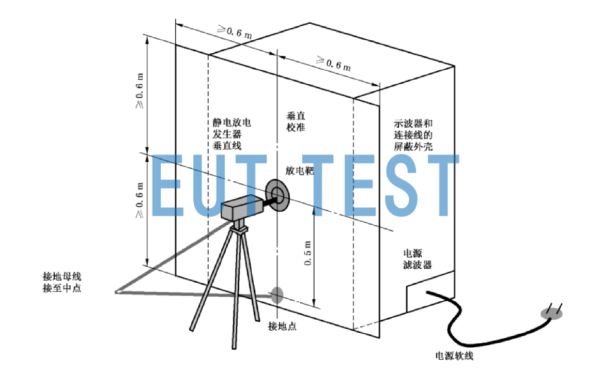

We offer a full range of calibration accessories for electrostatic current calibration, including Faraday cages, complete sets of test cables, electrostatic voltmeters, and more.

Complete set of calibration accessories

We also offer an electrostatic voltmeter compliant with IEC 61000-4-2 for calibrating the discharge voltage of electrostatic guns, click the link below to learn more:

ES105 High Resistance High Voltage Meter ESDEMC

EST105 High Resistance High Voltage Meter

Technical parameters：

Product Specification Sheet:

“Reminder: swipe tables left and right”

Product model

A4001

Manufacturer and agent sales in China

U.S. ESDEMC
EUTTEST Agent

Test Application

Electrostatic current test
Electrostatic Discharge Gun Current Calibration

Compliant with multiple ESD standards

IEC 61000-4-2 ED. 2.0 B:2008
ISO 10605:2008
GBT 17626.8-2018

bandwidths

DC-4GHz
Interpolation loss < ± 0.5 dB at 1 GHz
Interpolation loss < ± 1.2 dB at 4 GHz

Input impedance

2.08Ω±1%

Maximum pulse voltage level

±30kV

Standard Accessories

A4001 :Current target
AT2WN-20: Attenuator 20dB
RG4-NS-8: Standards-compliant RG400 test cable
-SMA2BNC: Adaptors
-CAL: factory report

Optional accessories

-SMA :Current target, SMA connector
AT2WN-6: N-connector attenuator 2W, 6 dB (calibrated for ESD voltages up to 30 kV when used with 20 dB attenuator)
AT2WN-30: N-connector attenuator, 2W, 30 dB (replaces default 20 dB attenuator, calibrates for ESD voltages up to 30 kV)
AT2WS-20: SMA connector attenuator 2W, 20 dB
RG4-SS-8: RG400 coaxial cable, SMA-SMA connector, 0.8 meters
-Repair :Current target repair (can repair other brands of ESD current target)
-ReCal: Current target recalibration (NIST checkable)
-TP: ESD Current Calibration Shield Plate
-TSC: ESD Current Calibration Shielded Cabinet with EMI Filters
