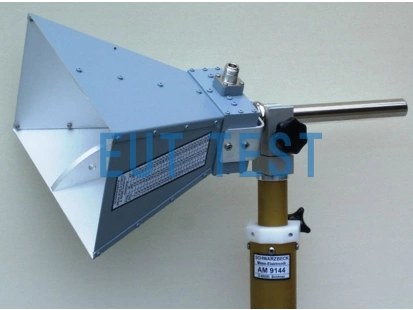

BBHA 9120 D Schwarzbeck Double Ridge Horn Antenna at 18 GHz

Introduction：

The BBHA 9120 D is a linearly polarized product from Schwarzbeck, Germany.Double ridge horn antennaBBHA9120D antenna is authorized by EUTTEST in Shenzhen, China to sell the antenna and provide quotation and after-sales service. The antenna is available in the frequency range of 1GHz-18GHz, the maximum input power varies with frequency from 1000W to 200W, and the BBHA9120D antenna generates a maximum field strength of 500V/m at the front end.

Technical parameters：

Product Specification Sheet:

Input power vs. field strength graph for BBHA 9120D:

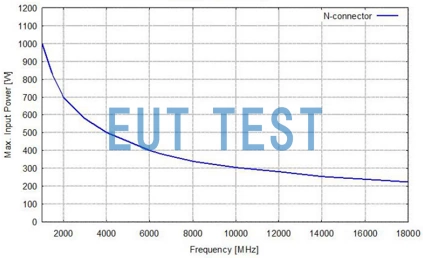

Maximum Input Power Graph

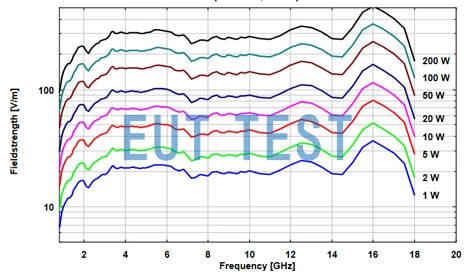

Plot of input power versus generated field strength at 1 meter test distance

The antenna can also be used for other distance testing applications, please contact us for more antenna metrology calibration data.

Schwarzbeck Official Authorized Dealer:

EUTTEST is an official authorized distributor of SCHWARZBECK, whose full official name is: SCHWARZBECK MESS - ELEKTRONIK OHG

Ltd. is authorized by schwarzbeck to sell all products in China and provide technical service for the products sold.

Click to view the image of the authorization
