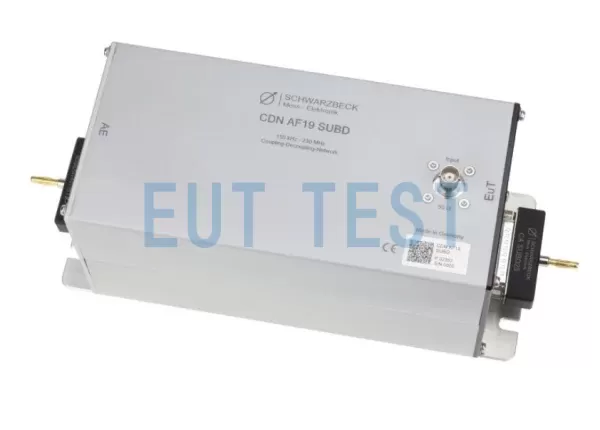

CDN AF SUBD Schwarzbeck Coupling Decoupling Network for DB9 or DB25 Communication Lines

Product Description:

CDN AF SUBD is a coupling decoupling network product for DB9 or DB25 communication lines produced by Schwarzbeck, Germany. You can use it to inject conductive power into the cable for communication devices with 9~25 wires, for example, products with serial or parallel ports belong to DB9 or DB25 lines.DB25communication line to assess whether the equipment under test can withstand the effects of RF power, fully compliant with IEC6100-4-6 and GBT17626.6 standards. This AF-SUBD type CDN product is represented by Shenzhen EUTTEST for sales and quotation service.

Technical parameters：

Product Specification Sheet:

The voltage divider and common mode impedance of this CDN are both constantly changing with frequency, and you will need to correct both data into the test configuration.

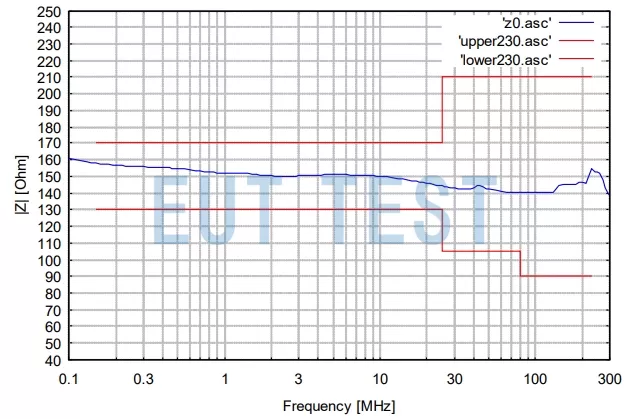

CDN-AF-SUBD Conducted Common Mode Impedance Test Chart

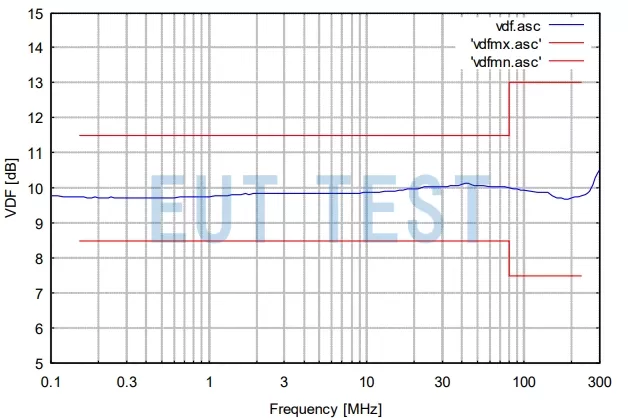

CDNAFSUBD Voltage Separation Factor Test Chart

Order No. EUTS0831

Schwarzbeck Official Authorized Dealer:

EUTTEST is an official authorized distributor of SCHWARZBECK, whose full official name is: SCHWARZBECK MESS - ELEKTRONIK OHG

Ltd. is authorized by schwarzbeck to sell all products in China and provide technical service for the products sold.

Click to view the image of the authorization
