CDN S2 XLR3-1 Coupling Decoupling Network for Audio Connectors

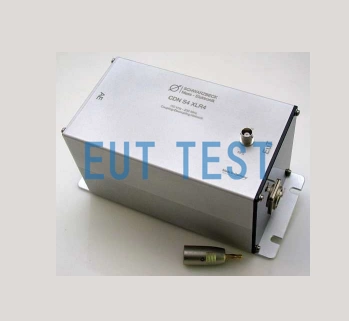

Coupling decoupling network for CDN S2 XLR3-1 connectors

CDN S2 XLR3-1 Coupling and Decoupling Network for Audio Connectors Common Mode Impedance Curves

The CDN S2 XLR3-1 enables conducted immunity testing of audio products with two shielded XLR connectors.

Order Number: EUTS0598

Type: CDN-S Sequentially Coupled Decoupled Networks

Brand: Schwarzbeck

Min. order: 1 Unit

Stock:

schwarzbeck Real Time Inventory

Delivery: Click on the link above to inquire

Standards:

IEC 61000-4-6

Industry： General Electronics

Warranty: Original Import ; New Products ; Authorized Sales

Training: On-site training; Telephone; Email

Logistics: Shenzhen to National

Payment: Internet Banking T/T

Product Price:

Introduction：

CDN S2 XLR3-1 is a coupling and decoupling network device for connecting XLR3-1 audio connectors produced by Schwarzbeck, Germany, which is authorized to be sold and quoted as a service by EUTTEST Shenzhen. The device complies with Figure D.1 of IEC 61000-4-6 for common mode immunity testing and is suitable for conducted immunity testing of audio products with two shielded XLR connectors, where pin 1 is used as an additional shielding pin.

The XLR3-1 enables conducted immunity testing of audio products with two shielded XLR connectors.

We also offer CDN S2 XLR3-3 devices can be used for immunity testing of products with XLR3-3 connectorsThe

Technical parameters：

Product Specification Sheet:

“Reminder: swipe tables left and right”

Model number

CDN S2 XLR3-1

Device name

Coupling decoupling network for XLR3-1 audio connectors

manufacturer

Schwarzbeck

China Agent Sales

EUT TEST

Test frequency range

10kHz-230MHz

Common mode impedance of CDN

At 10 kHz - 24 MHz: 150 Ω ±20 Ω
At 24MHz - 80MHz: 150 Ω +60 Ω / -45 Ω
80 MHz - 230 MHz: 150 Ω ±60 Ω

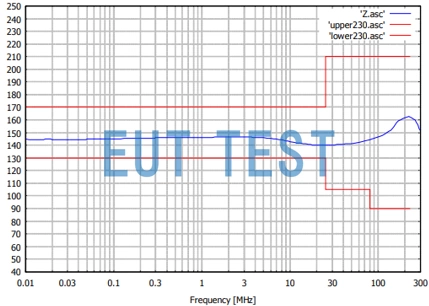

See common mode impedance graph below for detailed values.

partial pressure coefficient

10dB

Maximum RF Voltage

30V

Maximum input power

6W ≈ 37dBm

connector

BNC

Maximum Input Voltage

100V AC
150V DC

saturation current

0.25A
