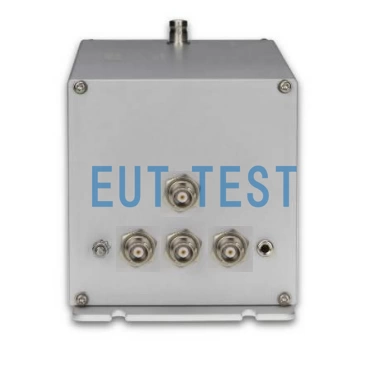

CDN S4 4xBNC 50 Ohm Coaxial Shielded Cable Coupling Decoupling Networks

CDN S4 4xBNC 50 Ohm Coaxial Shielded Cable Coupling Decoupling Network Common Mode Impedance Diagram

Model: CDN S4 4XBNC

Type: CDN-S Sequentially Coupled Decoupled Networks

Brand: Schwarzbeck

Min. order: 1 unit

Stock: 0 units

Delivery: 11 weeks

Standards:

IEC 61000-4-6

Industry： /

Warranty: Original Import ; New Products ; Authorized Sales

Training: On-site training; Telephone; Email

Logistics: Shenzhen to National

Payment: Online banking

Product Price:

Introduction：

CDN S4 4XBNC is a 4 BNC connectors coaxial shielded cable coupling decoupling network equipment from Schwarzbeck, Germany, can be used for impedance of 50 Ω coaxial shielded cable for conducted immunity testing, the product authorized by the Shenzhen EUTTEST agent sales and quotation service. The device meets the requirements of IEC 61000-4-6, Figure D.1, and can be used for conducted sensitivity testing of coaxial cables with 50 Ω impedance, supporting a maximum DUT input of 100 V AC or 150 V DC, and with a rated current of 0.25 A. The bottom of the device is equipped with a notch for connecting to a reference ground plane.

We also offer another CDN S1 BNC 75 can be used for conducted immunity testing of coaxial cables with 75Ω impedance.The

Technical parameters：

Model number	CDN S4 4XBNC
Device name	BNC 50 Ohm Coaxial Shielded Cable Coupling Decoupling Networks
Coaxial cable impedance under test	50Ω
Number of cables under test	4 strips with BNC connectors
manufacturer	Schwarzbeck
agent	EUT TEST
Test frequency range	10kHz-230MHz
Common mode impedance of CDN	At 10 kHz - 24 MHz: 150 Ω ±20 Ω At 24MHz - 80MHz: 150 Ω +60 Ω / -45 Ω 80 MHz - 230 MHz: 150 Ω ±60 Ω See common mode impedance graph below for detailed values.
partial pressure coefficient	9.5dB
Maximum RF Voltage	30V
Maximum input power	6W ≈ 37dBm
connector	BNC
Input/Output Impedance	50Ω
Maximum Input Voltage	100V AC 150V DC
saturation current	0.25A
size	216 mm105 mm108 mm
weight	1.6 kg
EUT Port Connector	4 x 50 ohm BNC connectors
AE Port Connector	4 x 50 ohm BNC connectors
Recommended Calibration Options	SA BNC SR 100-6W

<<<<提醒：左右滑动表格>>>>

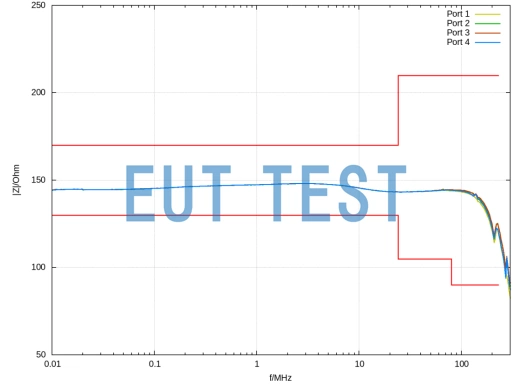

50 Ohm Coaxial Shielded Cable Coupling Decoupling Network Common Mode Impedance Graphs
