CDN S8 RJ45 Network Interface Coupling Decoupling Network with Shield

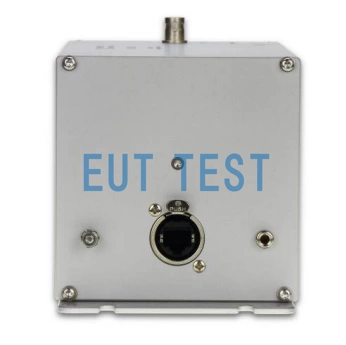

CDN S8 RJ45 Shielded Connectors for Coupling Decoupling Networks

CDN S8 RJ45 Network Interface Coupling Decoupling Network with Shield Common Mode Impedance Graphs

Order Number: EUTS0603

Type: CDN-S Sequentially Coupled Decoupled Networks

Brand: Schwarzbeck

Min. order: 1 Unit

Stock:

schwarzbeck Real Time Inventory

Delivery: Click on the link above to inquire

Standards: Common Test Standards

Industry： General Electronics

Warranty: Original Import ; New Products ; Authorized Sales

Training: On-site training; Telephone; Email

Logistics: Shenzhen to National

Payment: Internet Banking T/T

Product Price:

Introduction：

CDN S8 RJ45 is a network interface coupling decoupling network device with shield from Schwarzbeck, Germany, which is authorized by Shenzhen EUTTEST agent sales and quotation service. The device complies with the standard IEC 61000-4-6 proposed Figure D.1 requirements, can be shielded with the RJ45 network interface connector products for conducted immunity testing, the device supports a maximum of 100V AC voltage or 150V DC voltage input of the test object, rated current 0.5A.

If you are going to performConducted immunity testing of unshielded RJ45 port connectors, optional CDN T8 RJ45 The

Technical parameters：

Product Specification Sheet:

“Reminder: swipe tables left and right”

Model number

CDN S8 RJ45

Device name

RJ45 Network Interface Coupling Decoupling Network with Shield

manufacturer

Schwarzbeck

China Agent Sales

EUT TEST

Test frequency range

10kHz-230MHz

Common mode impedance of CDN

At 10 kHz - 24 MHz: 150 Ω ±20 Ω
At 24MHz - 80MHz: 150 Ω +60 Ω / -45 Ω
80 MHz - 230 MHz: 150 Ω ±60 Ω

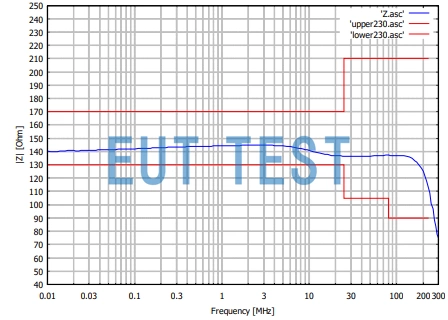

See common mode impedance graph below for detailed values.

partial pressure coefficient

10dB

Maximum RF Voltage

30V

Maximum input power

6W ≈ 37dBm

connector

BNC

Input/Output Impedance

50Ω

Maximum Input Voltage

100V AC
150V DC
