CDN T2 16A SCHWARZBECK Coupling Decoupling Network for Unshielded Balanced Lines

Introduction：

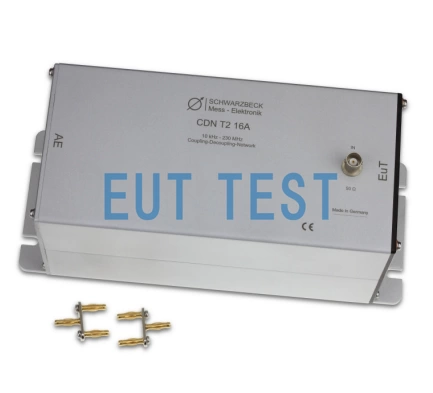

The CDN T2 16A is a coupling and decoupling network device for connecting two unshielded balanced lines from Schwarzbeck, Germany, which is authorized to be sold and quoted by EUTTEST Shenzhen. The device complies with the requirements of Figure D4 of IEC 61000-4-6 and can be used for conducted immunity testing of products with connectors for telephone lines, CAN lines and audio lines. The device supports a maximum DUT input of 20-100V AC or 150V DC with a rated current of 16A.

If your product's operating current is very low, you can choose a cheaper CDN T2 coupling decoupling network Rated current 0.25AThe

Technical parameters：

Product Specification Sheet:

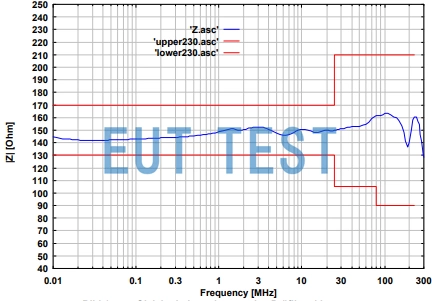

Common mode impedance graph

Other types of CDN recommendations:

• Learn how to shop for a CDN?
• Need CDNE?
• Need more CDN & CDNE Coupling & Decoupling Networks models with test voltages and number of cables under test?

Please go to the following link to view:

Difference between CDN and CDNE Schwarzbeck Coupling Decoupling Networks Product Catalog
