CDN10 M2 16A 1000V Extended Coupling Decoupling Network for 10kHz Frequency

Product Description:

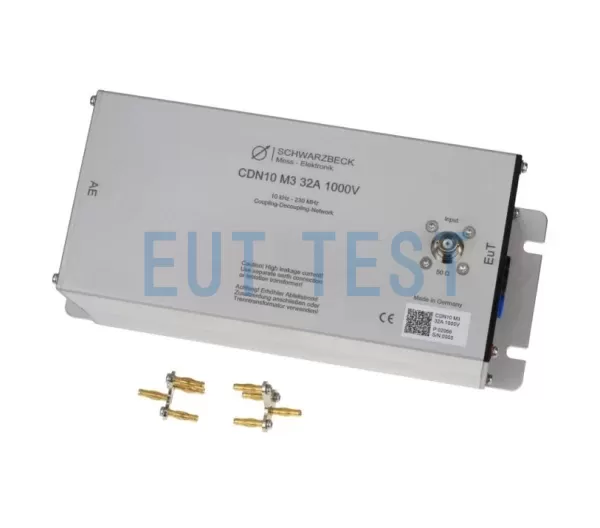

The CDN10 M2 16A 1000V is the new coupling and decoupling network of the German schwarzbeck in 2025 with an extended frequency of 10 kHz, with theCDN M2 16 A 1000 V The difference is that this new product extends the frequency of use to a minimum of 10kHz, greatly increasing the measurement range. Of course, it can also be used for conducted common-mode immunity testing according to IEC 61000-4-6, in accordance with IEC 61000-4-6 Appendix D.2. The new CDN10 sequence is suitable for conducted immunity testing of unshielded AC power cords and DC power cords and injects a common-mode interference signal.

Technical parameters：

Product Specification Sheet:

The common mode impedance of the CDN 10 M2 16 A 1000 V changes somewhat with frequency, the

• 10 kHz-24 MHz: 150 Ω ±20 Ω
• 24 MHz-80 MHz: 150 Ω +60 Ω /-45 Ω
• 80 MHz-230 MHz: 150 Ω ±60 Ω

See the common mode impedance test chart below for details.

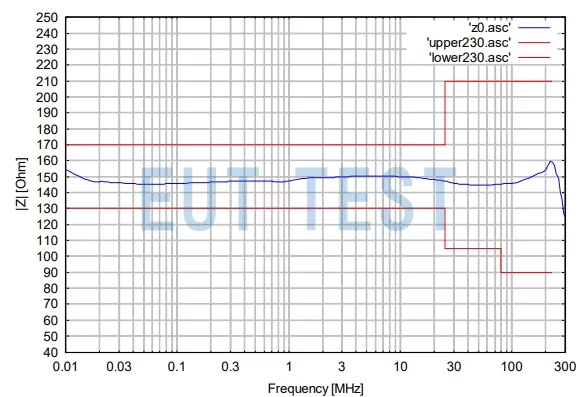

CDN10 M2 16A 1000V Common Mode Impedance Test Chart

Order No. EUTS0825
