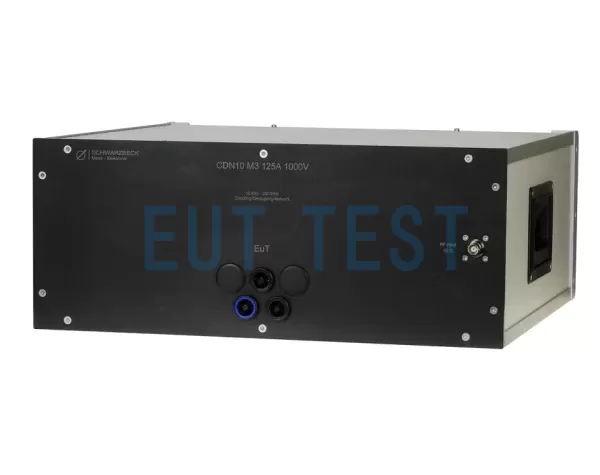

CDN10 M3 125A 1000V Schwarzbeck High-current coupling decoupling network

Product Description:

The CDN10 M3 125A 1000V is one of the high-current coupling and decoupling networks manufactured by Schwarzbeck in Germany in 2025, which is the same as the old model CDN M3PE 125A 1000V In comparison, the new CDN10 not only retains the 125A test current, but also extends the test frequency to a lower limit of 10kHz. Of course, it also meets the requirements of IEC61000-4-6 and the latest version of GB/T17626.6. Use this CDN with theCS Conducted Immunity GeneratorThe AC and DC power lines of your products are injected with conducted common-mode interference signals.

Technical parameters：

Product Specification Sheet:

The partial voltage coefficient of this product is shown in the figure below, we give the test data graph in the frequency range of 10kHz-300MHz, from the figure we can see that the partial voltage coefficient of the whole product is basically stable at about 10dB, but the test data of different frequencies are slightly different, you need to correct this partial voltage coefficient to the test software when you are conducting conducted common-mode immunity test, otherwise you will get wrong Otherwise, you will get wrong test results.

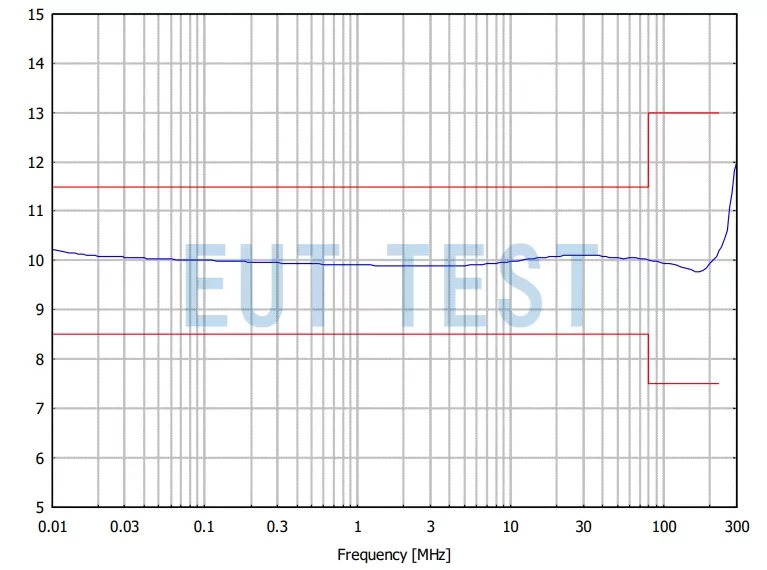

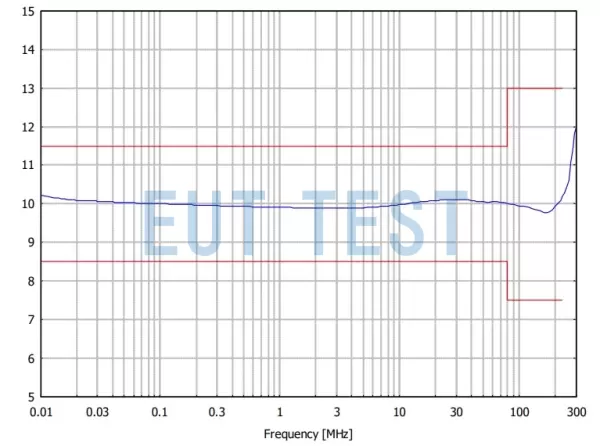

schwarzbeck CDN10 M3 125A 1000V voltage dividing factor test chart

Order No. EUTS0827
