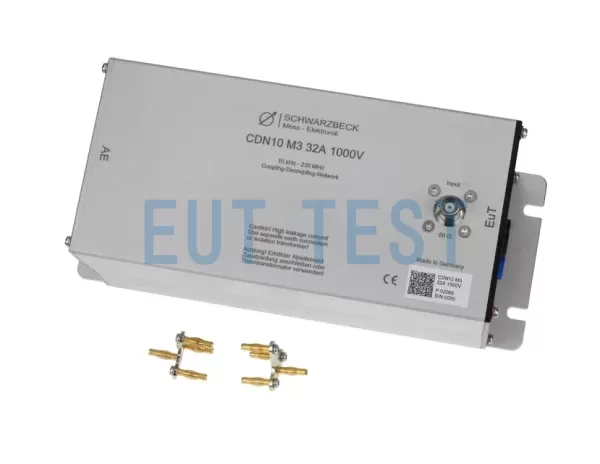

CDN10 M3 32A 1000V schwarzbeck 32A coupling decoupling network

Product Description:

The CDN10 M3 32A 1000V is the latest 32A coupling decoupling network from EMC manufacturer schwarzbeck to be launched at the end of 2025, compared to the EUTTEST that has been sold for many years. CDN M3 32A 1000VThis new sequence of CDN10 extends the lower test frequency limit to 10 kHz. complies with IEC 61000-4-6 Appendix D.2 and is suitable for conducted immunity injection testing of unshielded AC or DC power lines.

Technical parameters：

Product Specification Sheet:

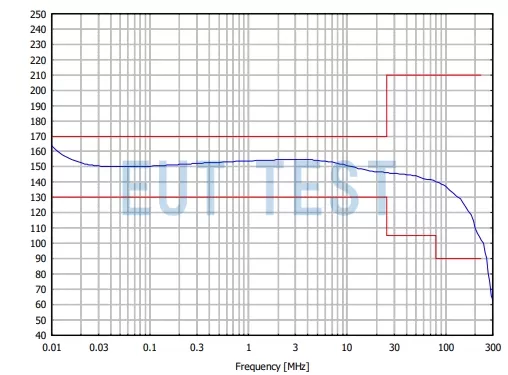

The common mode impedance of this CDN is not a stable 150 ohms and varies somewhat at different frequencies, but is within the impedance range required by the CISPR16 standard, as shown in the figure below.

CDN10 M3 32A 1000V Common Mode Impedance Calibration Test Chart

Order No. EUTS0826

Schwarzbeck Official Authorized Dealer:

EUTTEST is an official authorized distributor of SCHWARZBECK, whose full official name is: SCHWARZBECK MESS - ELEKTRONIK OHG

Ltd. is authorized by schwarzbeck to sell all products in China and provide technical service for the products sold.

Click to view the image of the authorization
