CDN10 M4PE 32A 1000V Schwarzbeck 4-wire CDN

Schwarzbeck CDN10 M4PE 32A 1000V Common Mode Impedance Test Chart

Order Number: EUTS0828

Type: CDN-M Sequentially Coupled Decoupling Network

Brand: Schwarzbeck

Min. order: 1 Unit

Stock:

schwarzbeck Real Time Inventory

Delivery: Click on the link above to inquire

Standards: Common Test Standards

Industry： General Electronics

Warranty: Original Import ; New Products ; Authorized Sales

Training: On-site training; Telephone; Email

Logistics: Shenzhen to National

Payment: Internet Banking T/T

Product Price:

Product Description:

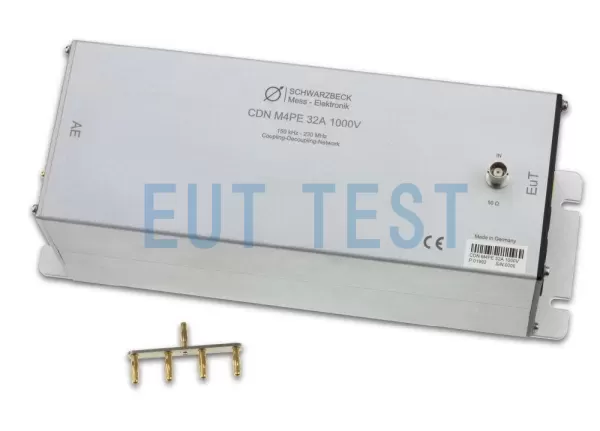

The CDN10 M4PE 32A 1000V is Schwarzbeck's new 4-wire CDN product that compares to the old CDN M4PE 32A 1000V EUTTEST sells this CDN with an extended lower test frequency limit of 10kHz and retains the number of test cables, current rating and voltage parameters, making it ideal for customers with conducted immunity testing needs from 10kHz to 150kHz.

Technical parameters：

Product Specification Sheet:

“Reminder: swipe tables left and right”

Model:

CDN10 M4PE 32A 1000V

Manufacturer:

Schwarzbeck

CDN Type:

M4PE

Frequency range:

0.01 MHz - 230 MHz

Common mode impedance:

10 kHz - 24 MHz: 150 Ω ±20 Ω
24 MHz-80 MHz: 150 Ω +60 Ω/-45 Ω
80 MHz-230 MHz: 150 Ω ±60 Ω

Maximum RF power

Maximum RF Voltage

30 V

EUT/AE interface:

4 conductors

EUT/AE connectors:

4 mm safety banana socket

Maximum current rating:

32 A

EUT Input Voltage (AE):

500 VAC / 1000 VDC
1000 VAC / 2000 VDC

Calibration adapter:

4-pin shorting bar CA 4/4 (2 pcs)

Optional accessories:

SR 30/4 SR100-6W

“Reminder: swipe tables left and right”

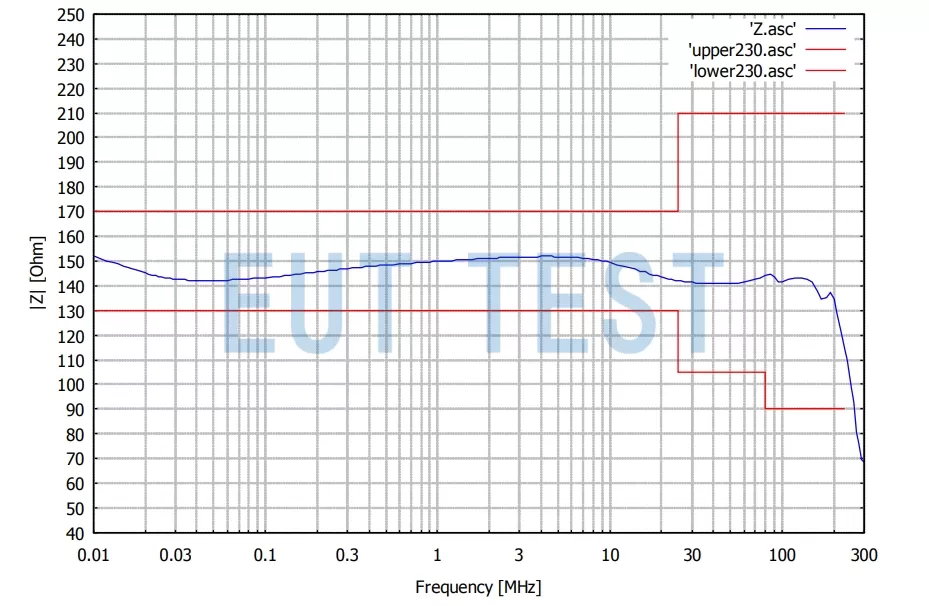

As with other 4-wire CDN products, the common-mode impedance of the CDN 10 M4PE 32A 1000V still meets the requirements of CISPR16-1-2 as well as GBT17626.6, which varies at each frequency as can be seen from the common-mode impedance test chart below.
