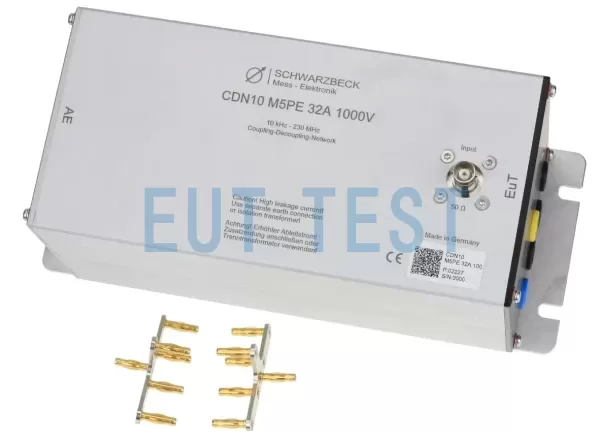

CDN10 M5PE 32A 1000V Schwarzbeck 3-phase 5-wire artificial power network

Product Description:

CDN10 M5PE 32A 1000V is one of the new three-phase, five-wire artificial power network products developed by Schwarzbeck in 2025, which is different from the old models sold by EUTTEST. CDN M5PE 32A 1000V In comparison, the new CDN10M5PE has been extended to measure conducted interference injection testing in the 10kHz-150kHz frequency range, and is identical to the old model except for the frequency, check the technical parameter information below for details.

Technical parameters：

Product Specification Sheet:

The common mode impedance of the CDN 10 M5PE 32A 1000V varies with frequency but meets the common mode impedance requirements of IEC 61000-4-6 for CDNs:

• 10 kHz-24 MHz: 150 ±20
• 24 MHz-80 MHz: 150 +60 /-45
• 80 MHz-230 MHz: 150 ±60

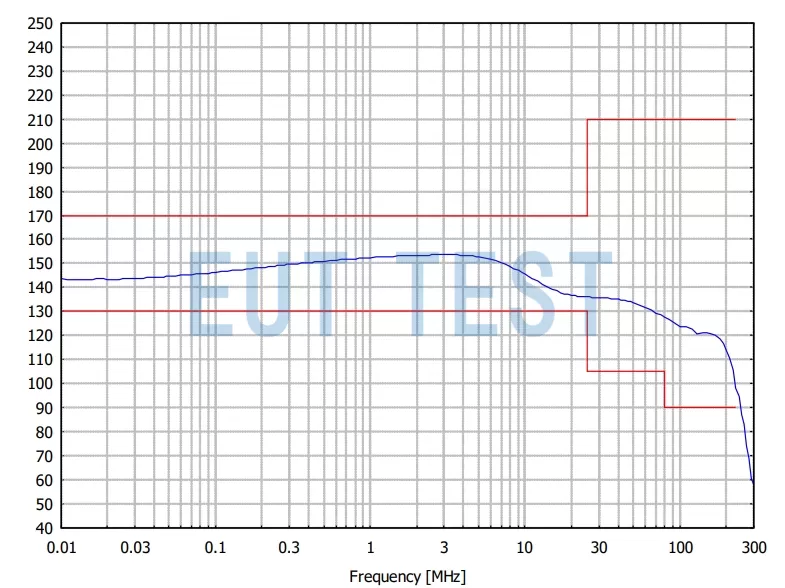

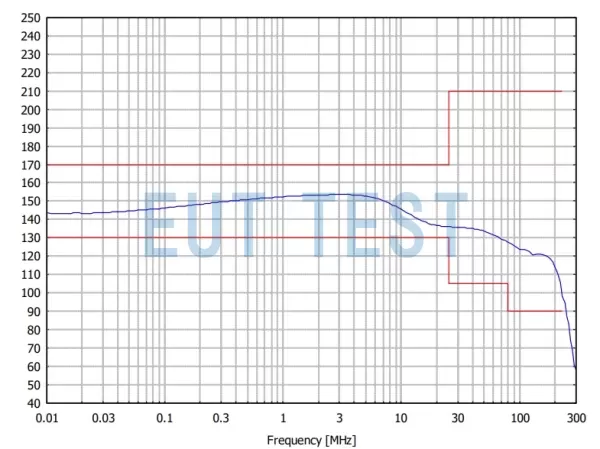

schwarzbeck CDN10 M5PE 32A 1000V Common Mode Impedance Test Chart

Use requires correction of the test results using the partial pressure coefficient test data provided by EUTTEST.

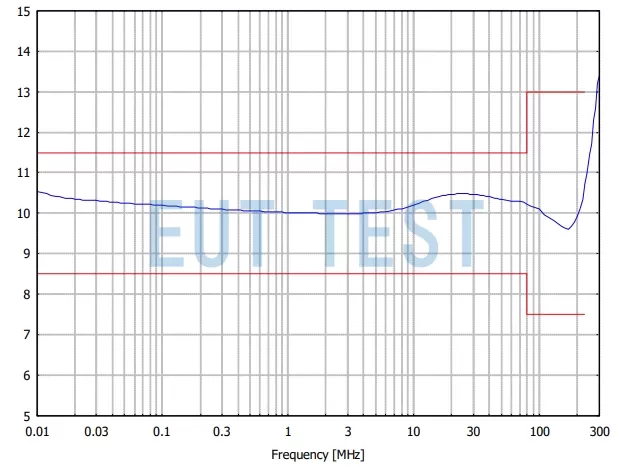

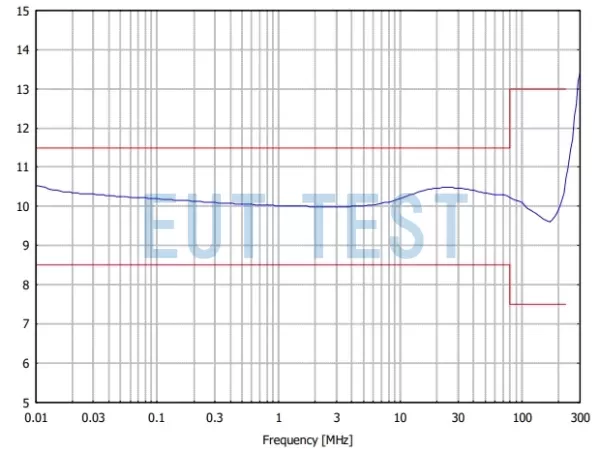

CDN10 M5PE 32A 1000V Divide Factor Test Chart

Order No. EUTS0829

Schwarzbeck Official Authorized Dealer:

EUTTEST is an official authorized distributor of SCHWARZBECK, whose full official name is: SCHWARZBECK MESS - ELEKTRONIK OHG

Ltd. is authorized by schwarzbeck to sell all products in China and provide technical service for the products sold.
