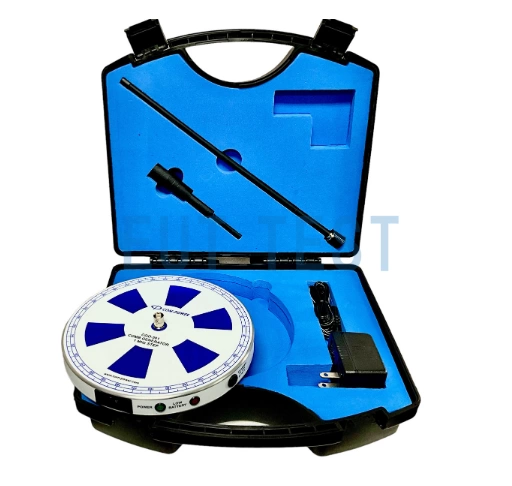

CGO-501 Compower 1.5GHz Radiated Noise Source

Product Description:

The CGO-501 is a 1.5 GHz radiated noise source manufactured by Compower, Inc. and is designed for use in the Radio Darkroom Radiation Site Prediction Test Certificate, as well as for use in OTA laboratories,Semi-anechoic chamber (SAC)The NSA site attenuation of the all-wave darkroom is verified by a few VSWR-site VSWR ratios. This noise source can not conduct the output signal, if you need to test the test data to verify the conductive emission, please purchase the CGC-255EThe

The CGO501 outputs noise signals in the frequency range from 1MHz to 1.5GHz. This noise source is battery-powered to avoid generating additional electromagnetic noise that could affect the radiation test results.

CGO-501 vs.CG-515The CGO501 has the same test frequency range, but the CGO501 can only set a 1MHz step frequency, so if you want a larger 5MHz step frequency, you can choose the CG-515 to fulfill your test needs.

The CGO 501 has a compact design with a maximum width of only 17.8 cm and a maximum antenna mounting height of 33.5 cm.

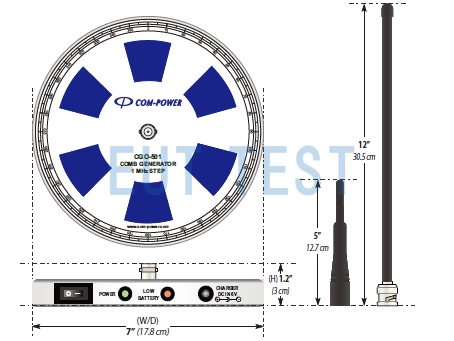

Width and height of CGO-501

Product Parameters:

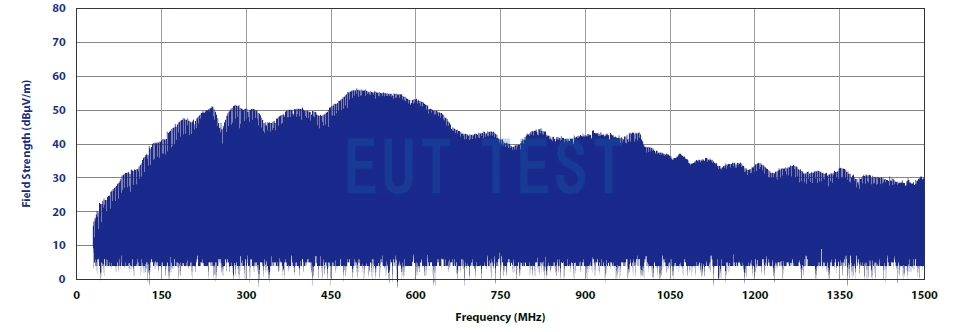

The CGO-501 is equipped with its own antenna for radiation output.
