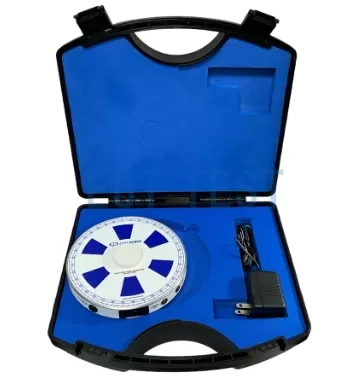

CGO-5100B com-power 18GHz Reference Signal Source

Product Description:

The CGO-5100B is an 18GHz reference signal source, also called EMI radiation field reference source, manufactured by com-power, Inc. It can emit up to 18GHz reference spectrum signals, with a built-in 100MHz stepping output device, and a built-in transmitting antenna, so that the user does not need to install an antenna to use it.

Product Features:

The following test requirements can be accomplished with the CGO-5100 B. We will provide you with a documented operating guide for the dedicated test application upon delivery.

• Laboratory period verification
• Monitoring of measurement errors in EMC laboratories
• controlradio frequency antennaperformance of
• Shielding Performance Test
• Comparison of test data between multiple laboratories

Product Parameters:

Test application:

We can use the 5100B reference signal source in the3-meter method radio darkroomAs can be seen from the graph below, the output signal has met the peak limit requirements of FCC PART 15, and is fully capable of simulating a DUT with a stable radiation signal for use.

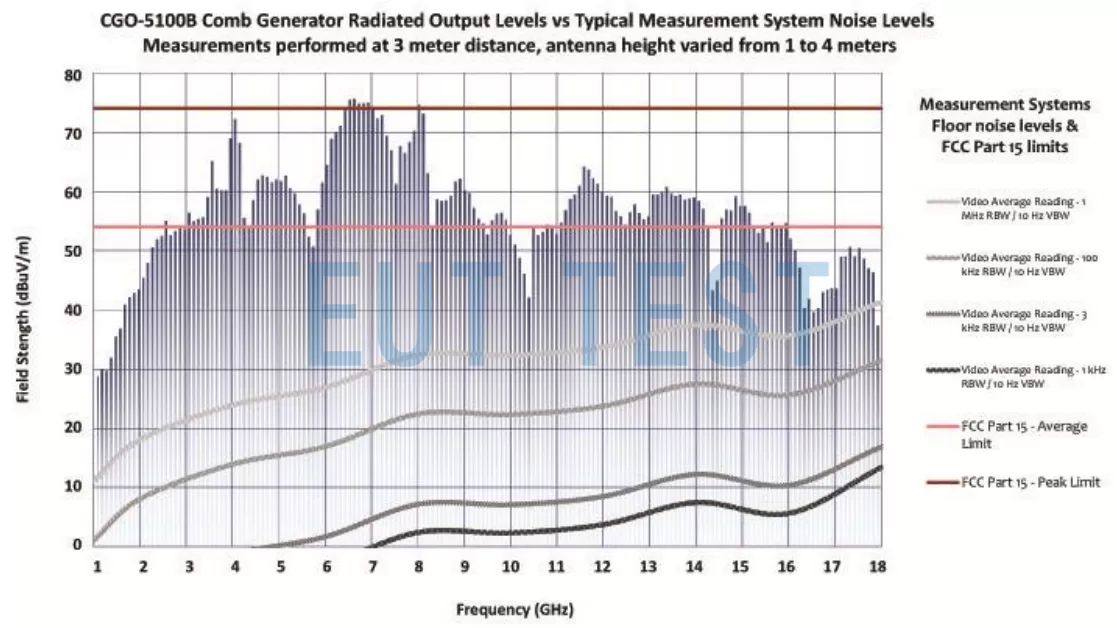

CGO-5100B Output Level at 3 Meter Method Laboratory
