ESLP 9145 Schwarzbeck Microwave Log Periodic Antenna

Introduction：

The ESLP 9145 is a microwave log-periodic antenna manufactured by Schwarzbeck, Germany and authorized for sale by EUTTEST, available from (0.7) 1 GHz - 18 (20) GHz, with an output field strength graph as shown below when using a 50Ω unmodulated (CW) source:

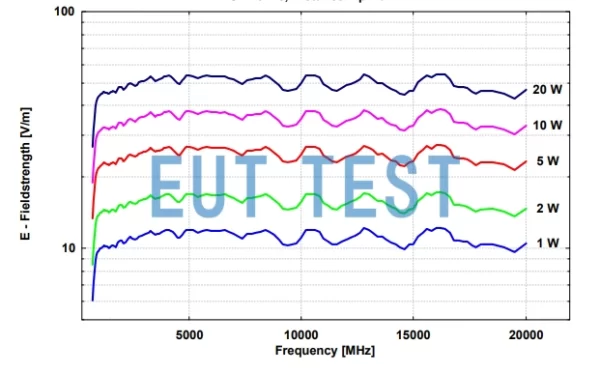

Field strength plot when using a 50Ω unmodulated (CW) source

If you need to increase the AM modulation of the 80% as required by the standard you will need 1.8 times the voltage, 3.24 times more power compared to continuous wave, and 100 times the amplifier power for a 10 times increase in field strength. For more calculations related to field size contact us for more information.
