ETS 3165-01 ETS-lindgren Dual Polarized Dual VIVALDI Array Antenna

ETS 3165-01 Physical Dimensions of Optional Models

Order Number: EUTS0177

Type: Logarithmic periodic antenna

Brand: ETS-Lindgren

Min. order: 1 Unit

Stock: 0

Delivery: 16 weeks

Standards: Common Test Standards

Industry： General Electronics

Warranty: Original Import ; New Products ; Authorized Sales

Training: On-site training; Telephone; Email

Logistics: Shenzhen to National

Payment: Internet Banking T/T

Product Price:

Introduction：

ETS 3165-01 is an array antenna manufactured by ETS-Lindgren and authorized to be sold by EUTTEST in Shenzhen, U.S.A. ETS-Lindgren's ETS 3165-01 Absorber Nested Dual Polarization Dual Vivaldi Array Antenna is designed for applications where the source antenna effect must be minimized such as irradiating the chamber where the equipment is located from different directions. Test (DUT).

ETS 3165-01 Product Features:

700 MHz to 6 GHz frequency range

low reflectivity

Bilinear polarization

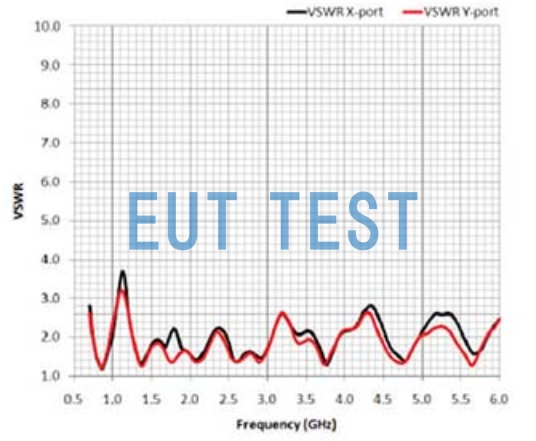

Low VSWR with high directivity

Multiple mounting options

Contact EUTTEST for a detailed installation plan

Technical data for ETS 3165-01:

“Reminder: swipe tables left and right”

Frequency range

700MHz-6GHz

Cross-polarized isolation

>25dB

Maximum continuous power

connector

SMA mother

impedance

50Ω

Antenna type

directional

polarize

bipolar

Available Models

ETS 3165-01 -MG
ETS 3165-01 -SQ
ETS 3165-01 -RD

Standard Accessories

Includes antenna for selected mounts (specified when ordering):
MG-Magnetic Seat
SQ-Mounted to 50.8 mm (2 in. x 2 in.) square tube
RD-Mounted to 50 mm (1.96 in) round tube
Individually calibrated at 1 m according to SAE ARP 958

“Reminder: swipe tables left and right”

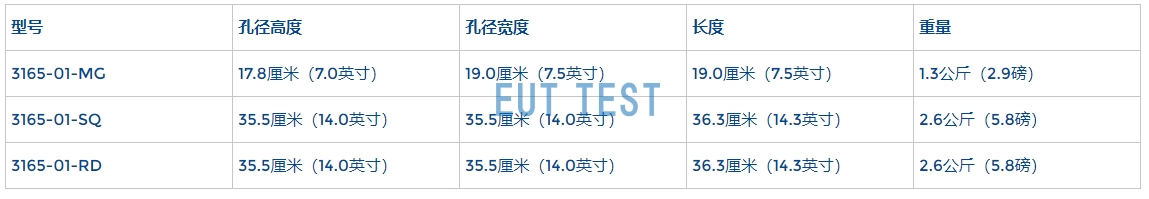

ETS 3165-01 Physical Dimensions of Optional Models
