F-170421-1008-1 FCC Multi-compatible Current Injection Probe Calibration Fixture

Product Description:

F-170421-1008-1 for the U.S. FCC developed multi-compatible current injection probe calibration fixture, can support the FCC company's three medium and high-frequency current injection probe to use, see the table below the ”applicable current probe products”, this product is very suitable for our country's metrology and testing institutes to buy, only need to have this calibration fixture can be adapted to a variety of FCC current injection probe products, relatively speaking, can save a lot of procurement costs. This product is very suitable for our National Institute of Metrology and Testing to purchase, only need to have this calibration fixture, can be adapted to a variety of FCC current injection probe products, relatively speaking, you can save a lot of procurement costs. Of course, if an automotive EMC lab only has one supported current injection probe, it can also purchase this fixture, and theoretically, customers will not purchase three probes at the same time. In short, you only need to purchase this calibration fixture to calibrate the insertion loss and VSWR parameters of multiple current injection probes. This product is sold and quoted in China by Shenzhen EUTTEST Test Technology Co.

Product Features:

Because of the multi-probe compatibility, it allows you to effectively simplify the laboratory calibration tooling configuration, improve equipment utilization, and significantly reduce laboratory equipment procurement and maintenance costs. The fixture shell is made of anodized aluminum, which is lightweight and has good heat dissipation, and the locking mechanism adopts a knob-type locking structure, which is easy to operate and allows EMC testers to complete the fixing and dismantling of probes without tools.

Technical parameters：

Note that this product also had an old model number of F-170421-1008-1-1, now that the FCC has removed the last -1 string, the latest model number is shown in the table below:

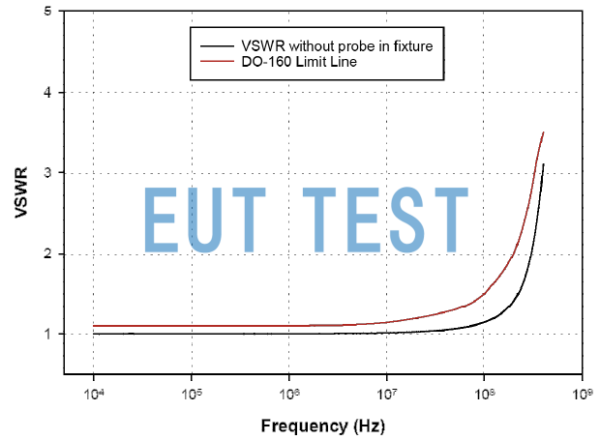

VSWR for F-170421-1008-1

Note: This product is branded as FCC - Fischer Custom Communications, Inc. and is not Federal Communications Commission (FCC) certified.

Note: Please refer to the original FCC factory data sheet for any changes in product parameters.

FCC Official Authorized Dealer:

EUTTEST is an official FCC authorized dealer, and the full official name of the company is: Fischer Custom Communications, Inc.

Ltd. is authorized by FCC to sell all FCC products in China and provide technical service for the products sold.

Click to view the image of the authorization
