F-170804-1005-2 FCC Large I.D. Current Probe

Product Description:

F-170804-1005-2 is a current probe from the U.S. FCC company produces, this probe supports 65mm large inner diameter, can measure and collect the 10Hz - 250MHz frequency range of the conducted current interference signal, the product size is compact, very suitable for on-site high-integration measurements, especially suitable for the EMC-automotive electronics laboratory or R & D personnel to rectify EMC problems or debugging PCB. This product is sold by Shenzhen EUTTEST agent sales and quotation and other after-sales service, we will be supplied together with the transfer impedance curve shown in the figure below.

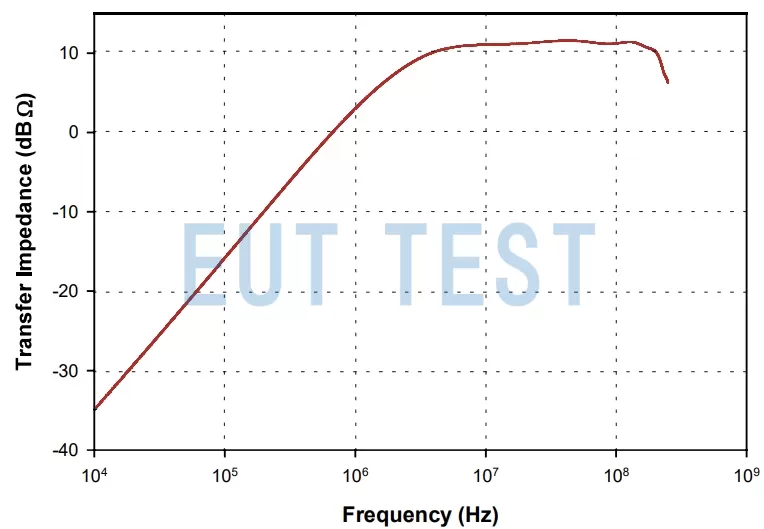

Transfer impedance curves after metrological calibration

If you need to measure up to 400MHz, you can purchase the same sequence:FCC F-170804-1005-1 Current Probe

Or shop for a less expensive FCC F-52B Current probe, which also supports measurements up to 400MHz, but with a much smaller internal diameter.

Technical parameters：

Product Specification Sheet:

Order No. EUTS0804

Note: This product is branded as FCC - Fischer Custom Communications, Inc. and is not Federal Communications Commission (FCC) certified.

Note: Please refer to the original FCC factory data sheet for any changes in product parameters.
