F-210602-1005-2 FCC 400A Current Probe

Product Description:

F-210602-1005-2 is a 400A current probe product produced by FCC, which supports RF interference current measurement within 400MHz, with insertion loss less than 1Ω. It is an active current probe, powered by external DC power supply, which can realize up to 40dB isolation from external electric and magnetic fields. This product has been authorized by Shenzhen EUTTEST to provide agent sales and after-sales service in China region.

This current probe has a high transfer impedance of 60dBΩ, which means that you may want to consider increasing the transfer impedance of the probe toPreamplifier, to minimize the effect of receiver background noise. There is also a same sequence and most of the parameters are the sameF-210602-1005-1 Current probes are available, which have a transfer impedance of only 20 dBΩ maximum.

Technical parameters：

Product Specification Sheet:

Transfer impedance calibration test results:

Use the data for each frequency in the following transmission impedance graphs to apply to your conduction tests.

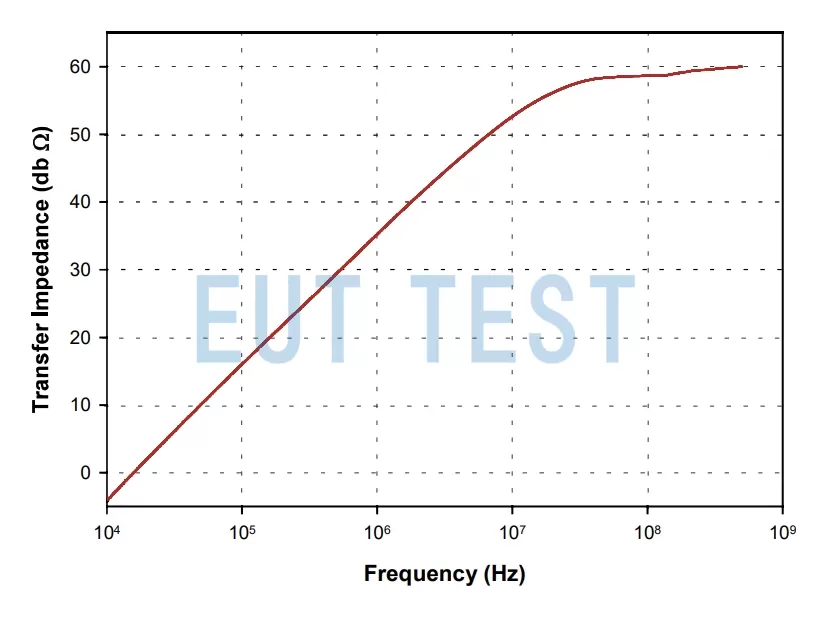

Transmission Transfer Impedance Diagram

Order No. EUTS0808

Note: This product is branded as FCC - Fischer Custom Communications, Inc. and is not Federal Communications Commission (FCC) certified.

Note: Please refer to the original FCC factory data sheet for any changes in product parameters.
