Product Description:
The F-230109-1008-1 is a large size current probe manufactured by the FCC in the U.S.A. It is mainly used for current interference injection testing up to 30MHz. The probe has an insertion loss of only 6dB at 1MHz, so you only need a very small amount of injected power to generate a high intensity 50Ω current.
This product is authorized to be sold and quoted for service by our agent.
Product Parameters:
“Reminder: swipe tables left and right”See insertion chart below for details

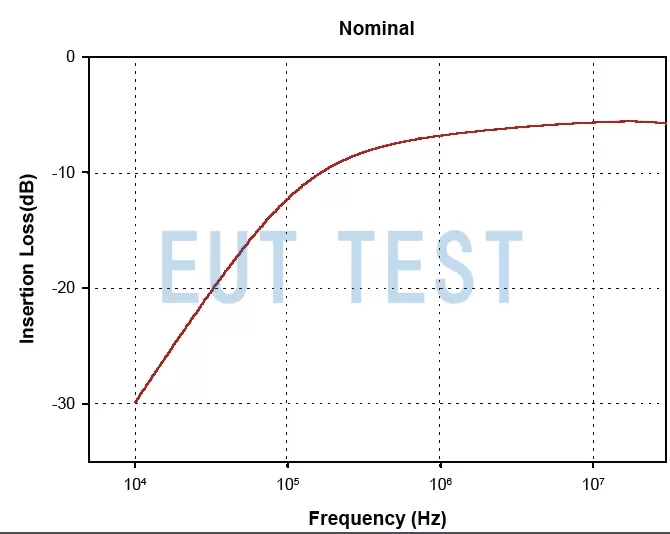

Insertion Loss Chart for FCC F-230109-1008-1
Order No. EUTS0776
Note: This product is branded as FCC - Fischer Custom Communications, Inc. and is not Federal Communications Commission (FCC) certified.
Note: Please refer to the original FCC factory data sheet for any changes in product parameters.
FCC Official Authorized Dealer:EUTTEST is an official FCC authorized dealer, and the full official name of the company is: Fischer Custom Communications, Inc.
Ltd. is authorized by FCC to sell all FCC products in China and provide technical service for the products sold.
