F-230824-1005-1 FCC 30MHz Current Probe

Product Description:

F-230824-1005-1 is a 30MHz current probe manufactured by the FCC in the U.S.A. It is ideally suited for EMC engineers to measure conducted interference signals on DUT power cables or communication cables in their labs. The basic way to use this probe is to use this probe+.spectrum analyzerIt is then possible to separate the conducting common mode and differential mode components, and we all know that theLISN or ISNThis current probe allows you to quickly solve the problem of excessive conducted interference after LISN measurements, while other measurement devices can obtain conducted interference signals below 30 MHz.

This product is represented by Shenzhen EUTTEST for sales and quotation, after-sales service, we will provide the calibration data of the current probe at the time of delivery, as well as the common mode and differential mode separation method.

Technical parameters：

Product Specification Sheet:

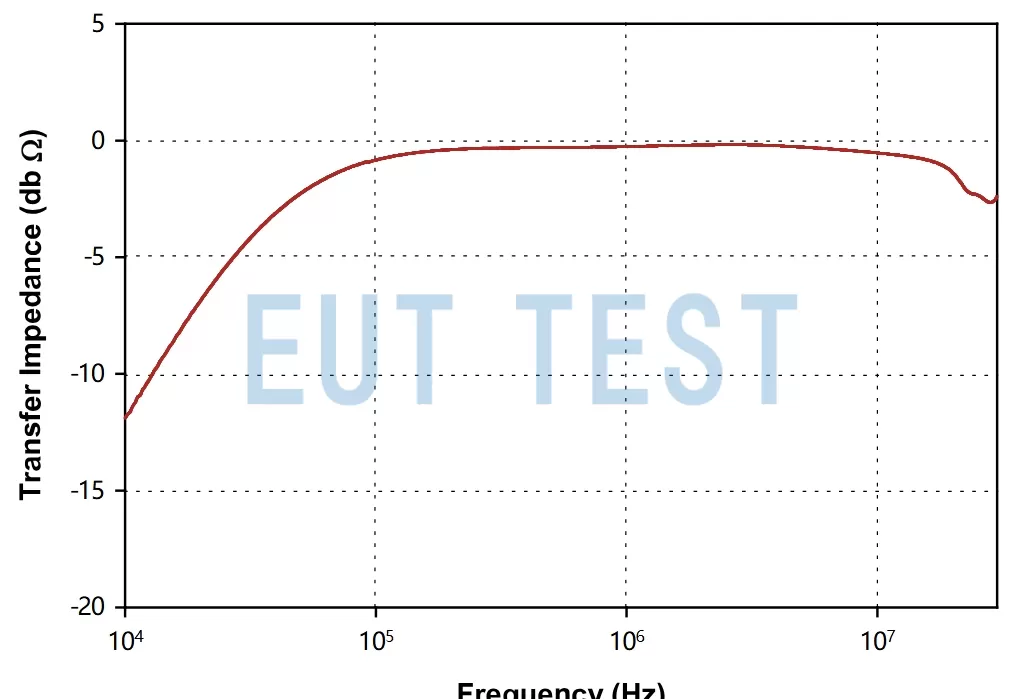

FCC F-230824-1005-1 Transmission Impedance Map

Order No. EUTS0812

Note: This product is branded as FCC - Fischer Custom Communications, Inc. and is not Federal Communications Commission (FCC) certified.

Note: Please refer to the original FCC factory data sheet for any changes in product parameters.

FCC Official Authorized Dealer:

EUTTEST is an official FCC authorized dealer, and the full official name of the company is: Fischer Custom Communications, Inc.

Ltd. is authorized by FCC to sell all FCC products in China and provide technical service for the products sold.

Click to view the image of the authorization
